FRONT FENDER MOLDING REMOVAL/INSTALLATION

id091600802100

1.  Pull the front fender molding in the direction of the arrow shown in the figure and remove the hook from the front fender panel.

am3zzw00023905

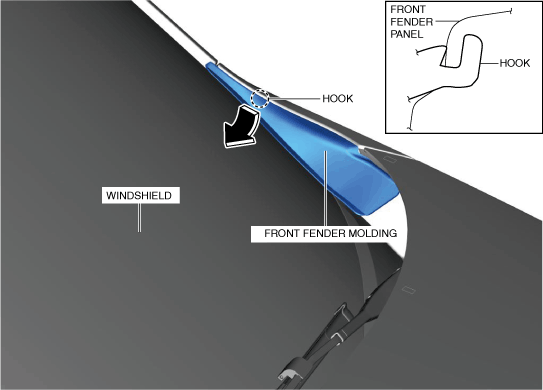

2.  Move the front fender molding in the direction of the arrow shown in the figure and remove the hook from the front fender panel.

am3zzw00023906

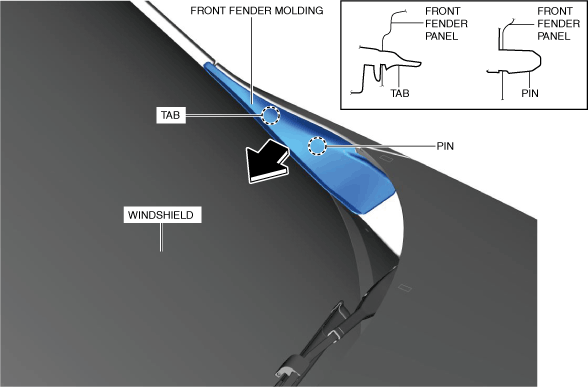

3.  Remove the front fender molding in the direction of the arrow while detaching the tab and pin.

am3zzw00023907

4.  Install in the reverse order of removal.
