REAR BELTLINE MOLDING REMOVAL/INSTALLATION

id091600804700

4SD

Replacement part

Caution

•  Before servicing, affix protective tape on the rear door outer panel when detaching the rear beltline molding clips from the rear door outer panel. Otherwise, the rear door outer panel could interfere with a remover tool and be damaged.

am3zzw00029718

1.  Fully open the rear door glass.

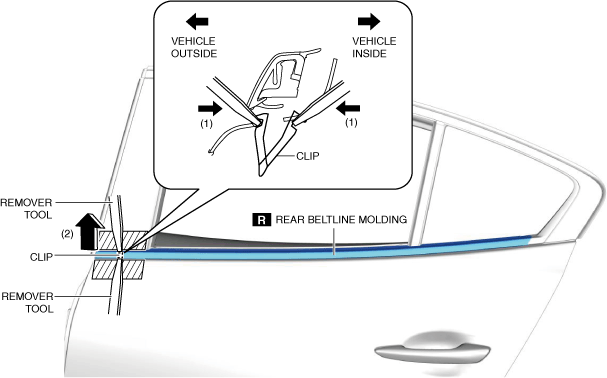

2.  Insert remover tools into the position shown in the figure, move them in the direction of arrows (1), detach the clip from the rear door outer panel.

am3zzw00029719

3.  Pull the rear beltline molding up in the direction of arrow (2).

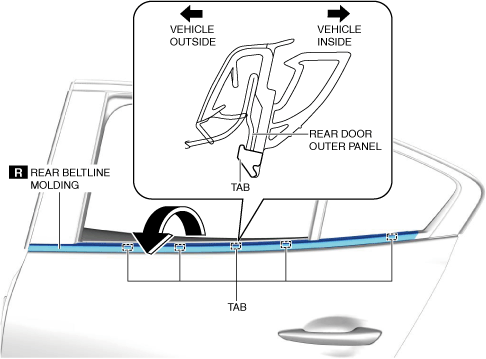

4.  Rotate the rear beltline molding in the direction of the arrow shown in the figure remove it while detaching the tabs from the rear door outer panel.

am3zzw00029720

5.  Install in the reverse order of removal.

5HB

Replacement part

Caution

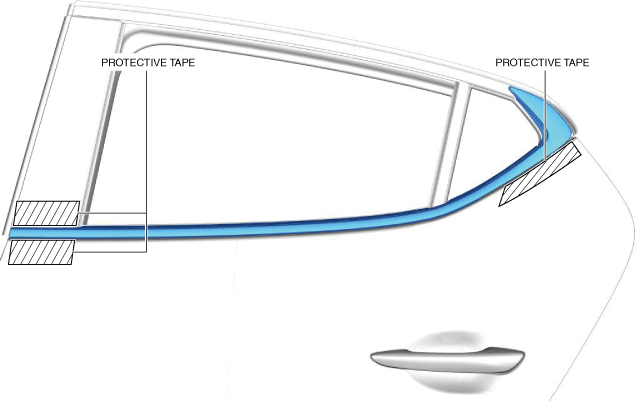

•  Before servicing, affix protective tape on the rear door outer panel when detaching the rear beltline molding clips from the rear door outer panel. Otherwise, the rear door outer panel could interfere with a remover tool and be damaged.

am3zzw00023937

1.  Fully open the rear door glass.

2.  Insert remover tools into the position shown in the figure, move them in the direction of arrows (1), detach the clip from the rear door outer panel.

am3zzw00029721

3.  Pull the rear beltline molding up in the direction of arrow (2).

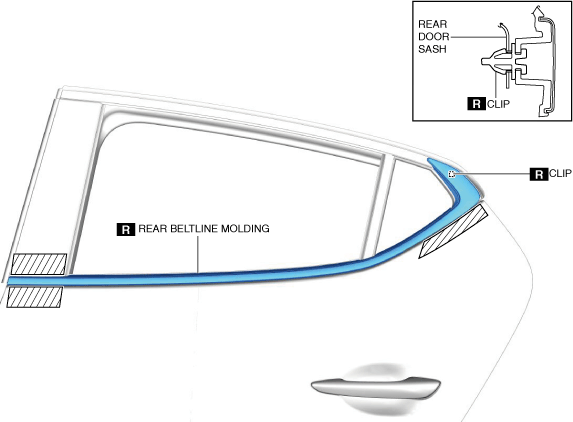

4.  Detach the clip from the rear door sash.

am3zzw00030894

5.  Insert remover tools into the position shown in the figure, move them in the direction of arrows (1), and detach the clip from the rear door outer panel.

am3zzw00029723

6.  Pull the rear beltline molding up in the direction of arrow (2).

7.  Rotate the rear beltline molding in the direction of the arrow shown in the figure remove it while detaching the tabs from the rear door outer panel.

am3zzw00029724

8.  Install in the reverse order of removal.
