UPPER FACE REMOVAL/INSTALLATION [(E)]

id0916008824x2

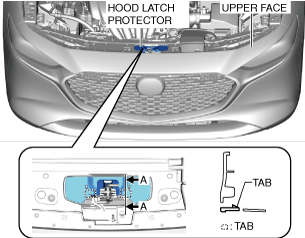

1.  Remove the hood latch protector while detaching the tabs.

am3zzw00029929

2.  Open the engine cover. (SKYACTIV-X 2.0) (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)

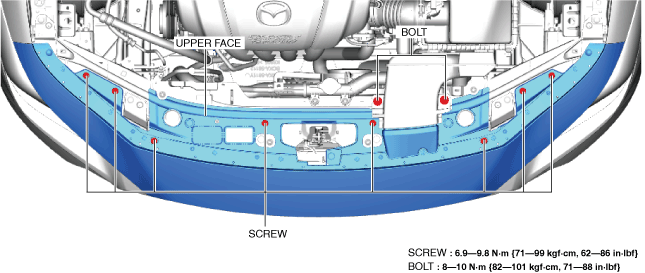

3.  Remove the screws and bolts.

am3zzw00029930

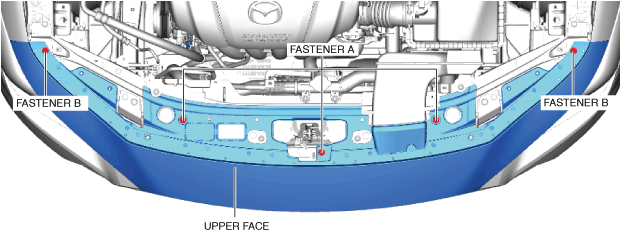

4.  Remove the fasteners A and B.

am3zzw00024773

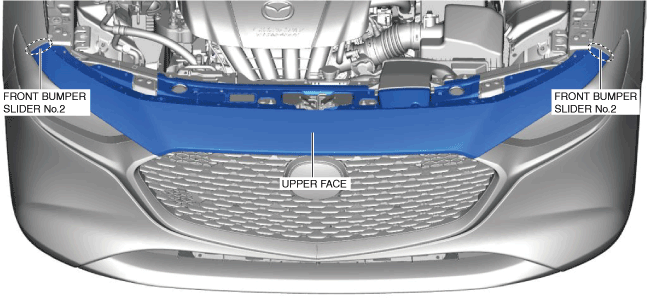

5.  Detach the upper face from the front bumper slider No.2.

am3zzw00029931

6.  Remove the upper face in the direction of the arrows shown in the figure while pulling out the locator pins.

am3zzw00024775

7.  Install in the reverse order of removal.
