UPPER FACE DISASSEMBLY/ASSEMBLY

id091600882500

Replacement part

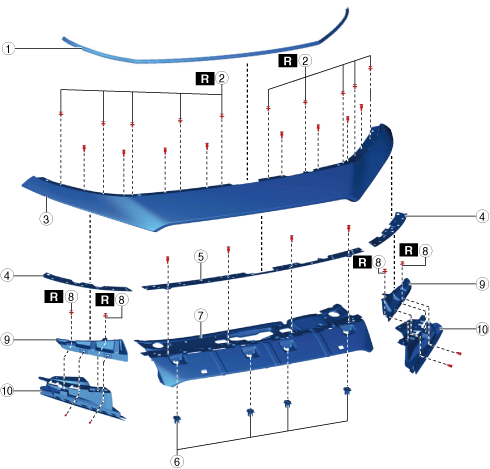

1.  Disassemble in the order indicated in the table.

am3zzw00027651

1	Parting seal weatherstrip
2	Rivet A (SeeRivet Removal Note.)
3	Upper grille
4	Set plate A
5	Set plate B
6	Locator pin
7	Bracket A
8	Rivet B (SeeRivet Removal Note.)
9	Bracket B
10	Bracket C

2.  Assemble in the reverse order of disassembly.

Rivet Removal Note

Caution

•   If an inappropriate drill diameter is used, the upper face may be damaged.

1.  When removing the rivet, perform the following procedure:

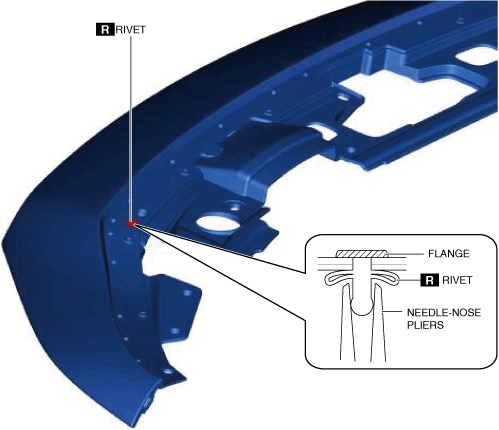

(1)  Secure the rivet pin from the upper face inside using needle-nose pliers.

am3zzw00027652

(2)  Use the following drill diameter.

Drill diameter:

Rivet A: 4.1 mm {0.16 in}

Rivet B: 4.8 mm {0.19 in}

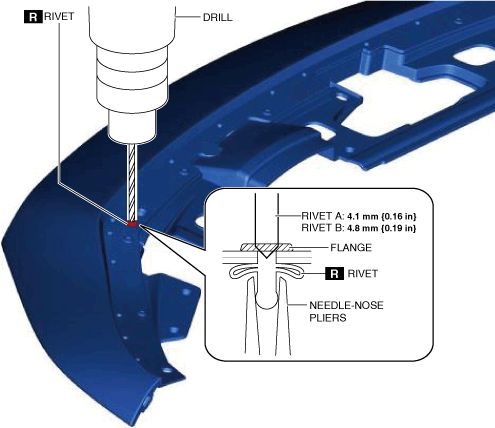

(3)  Remove the rivet flange using a drill and remove the rivet.

am3zzw00027653

(4)  Remove any rivet shavings from the upper face.
