REAR UNDER COVER REMOVAL/INSTALLATION

id091600900100

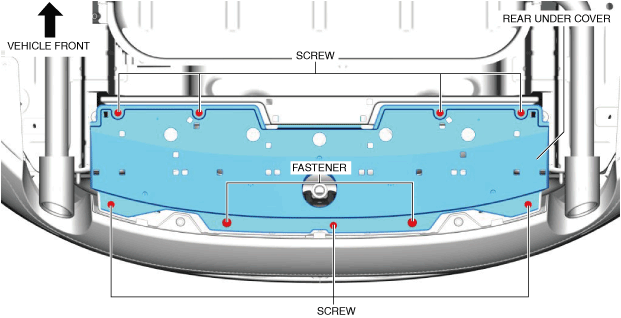

1.  Remove the screws.

am3zzw00029322

2.  Remove the fasteners.

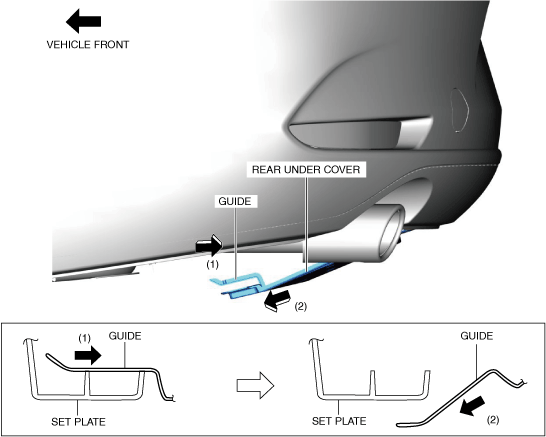

3.  Remove the rear under cover in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the guide.

am3zzw00023970

4.  Install in the reverse order of removal.
