DEFLECTOR REMOVAL/INSTALLATION


id091600900500


Front Deflector

1.  Remove the bolts and fastener.

LH

am3zzw00026352

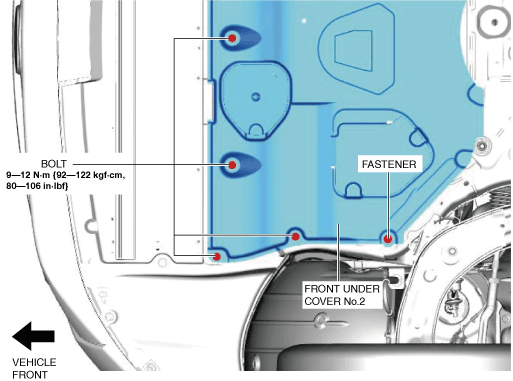

RH

am3zzw00026353

2.  Partially peel back the front under cover No.2.

3.  Remove the screw.

am3zzw00026354

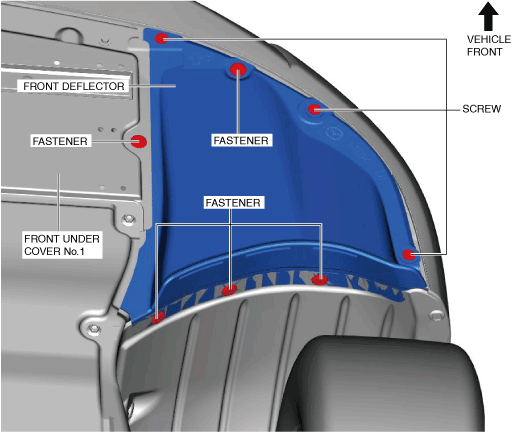

4.  Remove the fasteners and screws.

am3zzw00026355

5.  Remove the front deflector.

6.  Install in the reverse order of removal.


Rear Deflector

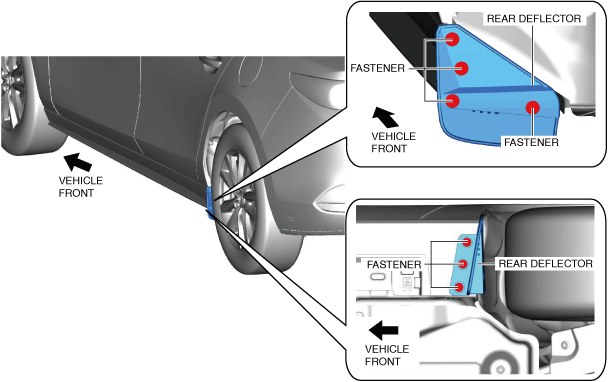

1.  Remove the fasteners.

am3zzw00026356

2.  Remove the rear deflector.

3.  Install in the reverse order of removal.
