TRUNK COVERING REMOVAL/INSTALLATION

id091700462500

4SD

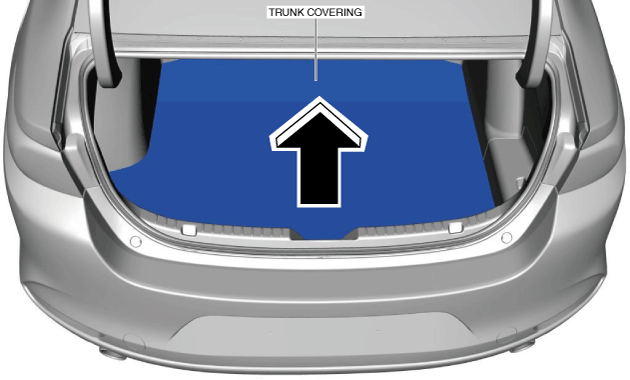

1.  Remove the trunk covering in the direction of the arrow shown in the figure.

am3zzw00021767

2.  Install in the reverse order of removal. (See Trunk Covering Installation Note.)

5HB

1.  Remove the trunk covering in the direction of the arrow shown in the figure.

am3zzw00021768

2.  Install in the reverse order of removal.

Trunk Covering Installation Note

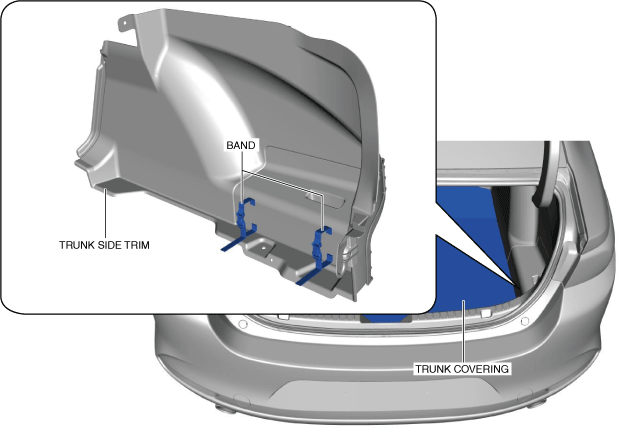

1.  After installing the trunk covering, pull out the trunk side trim bands above the trunk covering. (with band only)

am3zzw00031264
