DRIVER-SIDE FLOOR MAT INSTALLATION

id091700610100

Warning

•  If the driver-side floor mat is not placed properly or not secured, it could slip and interfere with the pedals which could lead to an accident.

•  Use the floor mat designed for installation in the vehicle.

•  Do not stack floor mats on the driver’s side.

1.  Temporarily place the floor mat on the floor on the driver’s side and position it.

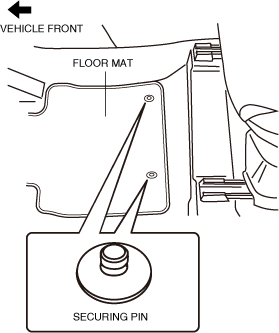

2.  Secure the floor mat at the 2 securing pin locations and install.

am3zzw00038050

Driver-side Floor Mat Installation Note

1.  Pull the driver-side floor mat towards the vehicle front and verify that it is secured.

2.  Verify that the driver-side floor mat does not interfere with the pedals.
