LOWER PANEL DISASSEMBLY/ASSEMBLY [(E)]

id0917006120x2

Driver-side

L.H.D.

1.  Disassemble in the order indicated in the table.

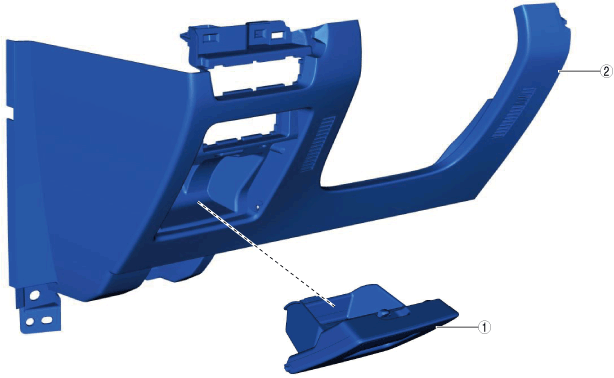

am3zzw00029138

1	Pocket
2	Driver-side lower panel

2.  Assemble in the reverse order of disassembly.

R.H.D.

1.  Disassemble in the order indicated in the table.

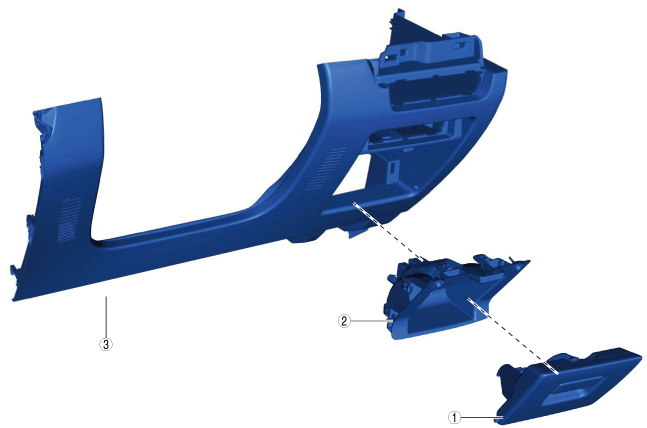

am3zzw00029805

1	Pocket
2	Coin box
3	Driver-side lower panel

2.  Assemble in the reverse order of disassembly.

Passenger-side

1.  Disassemble in the order indicated in the table.

am3zzw00029139

1	Screw
2	Bracket
3	Damper
4	Stopper
5	Passenger-side lower panel

2.  Assemble in the reverse order of disassembly.
