TRUNK LID HANDLE REMOVAL/INSTALLATION

id091700612200

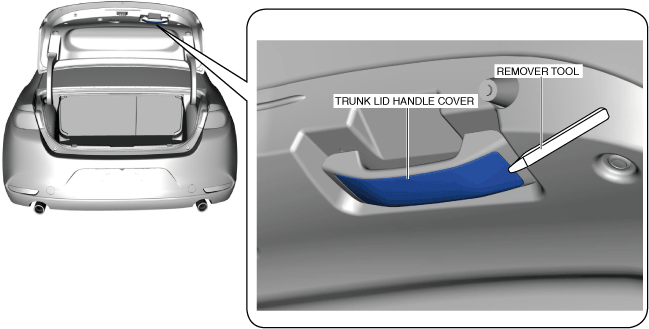

1.  Insert a remover tool into the position shown in the figure.

am3zzw00021781

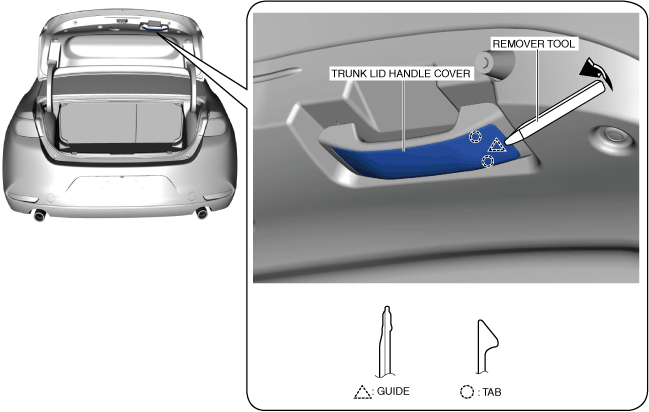

2.  Move the remover tool in the direction of the arrow shown in the figure and detach the tabs and guide.

am3zzw00031663

3.  Remove the trunk lid handle cover in the direction of the arrow shown in the figure while detaching the tabs and guide.

am3zzw00031664

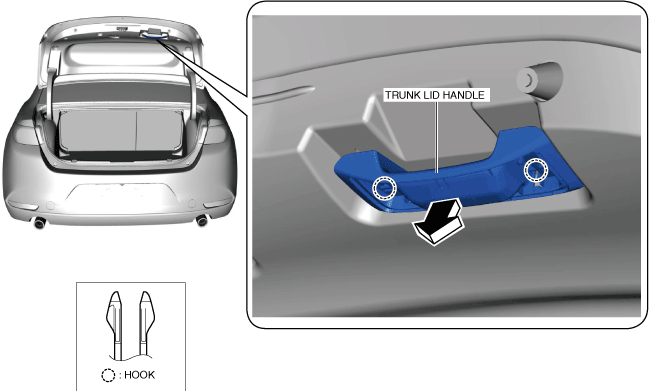

4.  Remove the trunk lid handle in the direction of the arrow shown in the figure while detaching the hooks.

am3zzw00031665

5.  Install in the reverse order of removal.
