REAR CONSOLE DISASSEMBLY/ASSEMBLY
id091700898600
1. Disassemble in the order indicated in the table.
am3zzw00029169
|
|
1
|
Screw
|
|
2
|
Console panel
(See Console Panel Removal Note.)
|
|
3
|
Rear console bracket (front)
|
|
4
|
Rear console box
|
|
5
|
Screw
|
|
6
|
Bracket cover
|
|
7
|
Screw
|
|
8
|
Rear console parts
|
|
9
|
Screw
|
|
10
|
Rear console bracket (rear)
|
|
11
|
Plate
|
|
12
|
Pin
|
|
13
|
Spring
|
|
14
|
Rear console lid
|
2. Assemble in the reverse order of disassembly.

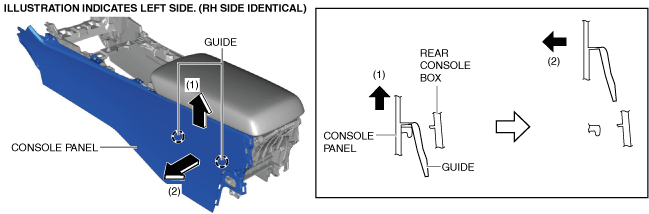

Console Panel Removal Note
1. Move the console panel in the order of arrows (1) and (2) shown in the figure and remove the guides from the rear console box.
am3zzw00029807
|
