CARGO COMPARTMENT LIGHT

id091800012600

Purpose

• The cargo compartment light illuminates the cargo compartment interior when the liftgate is opened.

Function

• When the liftgate is opened, illuminates by the cargo compartment light switch turning on.

Construction

• The cargo compartment light is installed to the trunk side upper trim.

am3zzn00008857

Operation

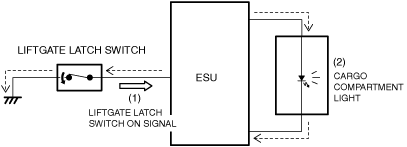

1. When the liftgate is opened, the electrical supply unit (ESU) detects (1) a liftgate latch switch on signal.

2. When the electrical supply unit (ESU) detects (1) the liftgate latch switch on signal, it turns the cargo compartment light on (2).

am3zzn00010383
