VANITY MIRROR ILLUMINATION INSPECTION

id091800808500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the vanity mirror illumination. (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage to vanity mirror illumination terminal A, and connect the ground to terminal C.

am3zzw00030831

•  If not as indicated in the table, replace the vanity mirror illumination. (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION.)

4.  Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION.)

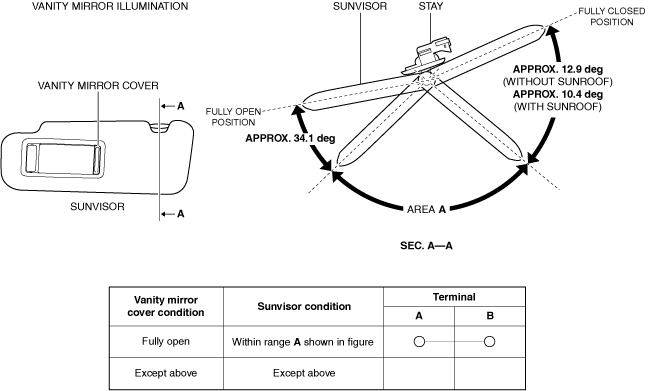

5.  Verify that the vanity mirror position.

am3zzw00029248

•  If not as indicated in the table, replace the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION.)
