REAR WASHER NOZZLE ADJUSTMENT

id091900802300

Caution

•  If the nozzle angle is adjusted with excessive force by inserting a needle or similar thin tool into the rear washer nozzle, it could damage the nozzle internally. When adjusting the rear washer nozzle, be careful not to apply excessive force.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Remove the rear spoiler. (See REAR SPOILER REMOVAL.) (See REAR SPOILER INSTALLATION.)

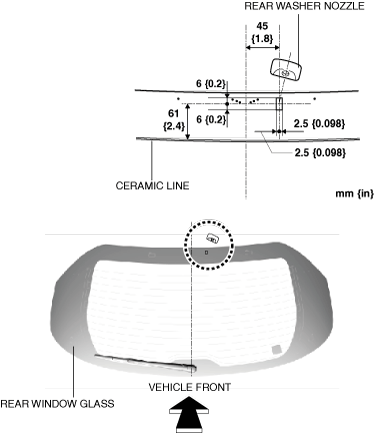

4.  Insert a needle or similar thin tool into the rear washer nozzle and adjust the area where washer fluid is sprayed as shown in the figure.

am3zzw00030749

am3zzw00030895
