WIPER AND WASHER SWITCH INSPECTION [(E)]

id0919008028x2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)])

3.  Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.

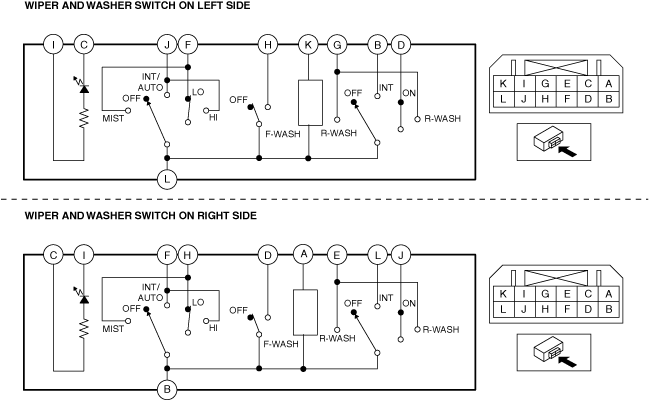

am3zzw00029858

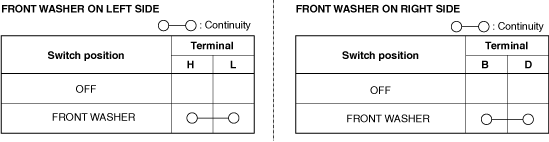

am3zzw00029859

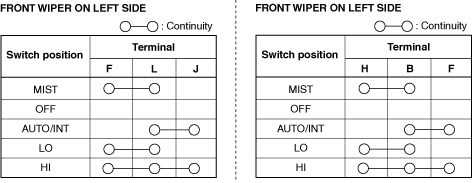

am3zzw00029860

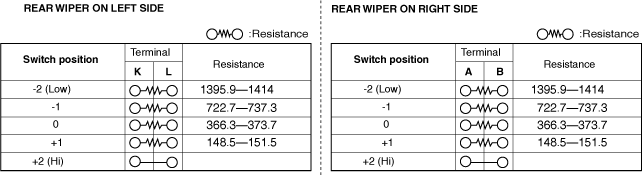

am3zzw00029861

•  If the continuity is not as indicated in the table, replace the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)
