CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY

id092000031600

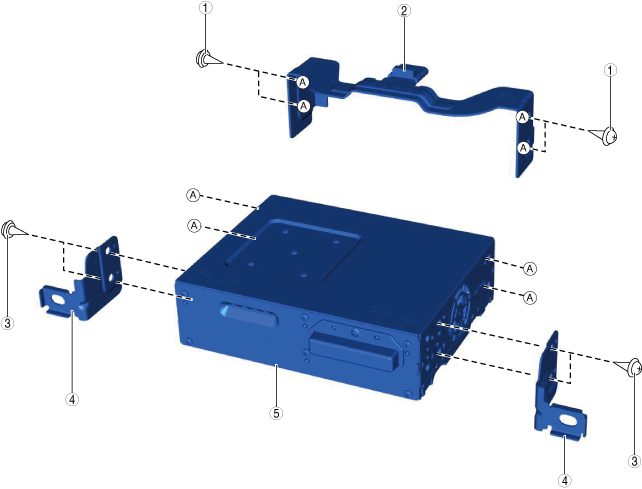

1.  Disassemble in the order indicated in the table.

am3zzw00024052

1	Screw
2	Bracket A
3	Screw
4	Bracket B
5	CMU

2.  Assemble in the reverse order of disassembly.
