USB PORT INSPECTION

id092000799000

1.  Switch the ignition ON (engine off).

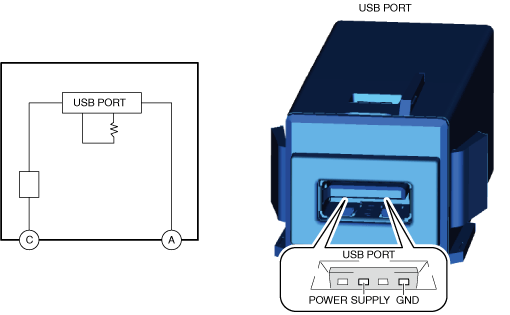

2.  Measure the voltage between the USB port power supply and GND.

am3zzw00029429

If the voltage is from 4.75 V to 5.25 V:

•  The USB power outlet is normal.

If the voltage is less than 4.75 V or higher than 5.25 V:

•  Replace the USB power outlet. (See USB PORT REMOVAL/INSTALLATION [(E)])
