STEERING SWITCH INSPECTION


id092000822600

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Remove the steering wheel.(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)])

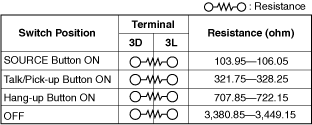

3.  Verify that the resistance and continuity between the steering switch terminals is as indicated in the table.

am3zzw00032842

•  If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)
am3zzw00027471
am3zzw00027472
am3zzw00027473

4.  Apply battery positive voltage to steering switch terminal 1N, and connect terminal 3B to ground.

am3zzw00032843

5.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)
