MAIN FUSE [(E)]

id0921008000y2

Purpose

• If electric current of the specified value or more flows to each fuse, the fuse melts due to heat generation to protect the systems and parts downstream of the fuse.

Function

• If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.

Construction

• Installed to the battery terminal (+).

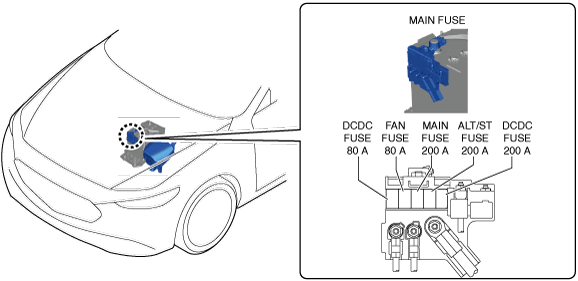

SKYACTIV-G

am3zzn00009502

SKYACTIV-D

am3zzn00008825

Operation

1. If electric current of the specified value or more flows, the main fuse blows due to heat generation (1).

Note

• The time until a fuse blows depends on the amount of electrical current.

2. If the main fuse blows, electric current flowing to each part downstream of the main fuse is interrupted (2).
