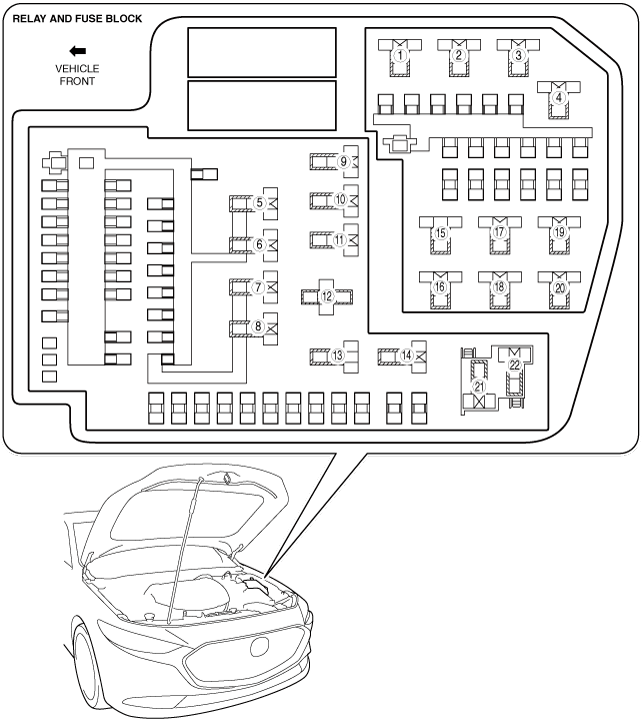

RELAY LOCATION [(E)]
id0921008006y2
SKYACTIV-G
am3zzw00035128
|
|
1
|
Windshield wiper de-icer relay
|
|
2
|
Headlight cleaner relay
|
|
3
|
Main relay
|
|
4
|
—
|
|
5
|
IG1 relay No.1
|
|
6
|
IG1 relay No.2
|
|
7
|
Starter relay
|
|
8
|
ACC relay
|
|
9
|
Rear window defogger relay
|
|
10
|
—
|
|
11
|
Horn relay
|
|
12
|
Blower relay
|
|
13
|
—
|
|
14
|
Ignition relay (IG1_STAB)
|
|
15
|
Sub relay
|
|
16
|
Fuel pump relay
|
|
17
|
Electric variable valve timing relay
|
|
18
|
—
|
|
19
|
A/C relay
|
|
20
|
Electric AT oil pump relay
|
|
21
|
Cooling fan relay No.2
|
|
22
|
Cooling fan relay No.1
|
SKYACTIV-D
am3zzw00030915
|
|
1
|
Windshield wiper de-icer relay
|
|
2
|
Headlight cleaner relay
|
|
3
|
Main relay
|
|
4
|
—
|
|
5
|
IG1 relay No.1
|
|
6
|
IG1 relay No.2
|
|
7
|
Starter relay
|
|
8
|
ACC relay
|
|
9
|
Rear window defogger relay
|
|
10
|
—
|
|
11
|
Horn relay
|
|
12
|
Blower relay
|
|
13
|
—
|
|
14
|
Ignition relay (IG1_STAB)
|
|
15
|
Blow-by heater relay
|
|
16
|
Fuel warmer relay
|
|
17
|
Electric variable valve timing relay
|
|
18
|
SCR relay
|
|
19
|
A/C relay
|
|
20
|
Electric AT oil pump relay
|
|
21
|
Cooling fan relay
|

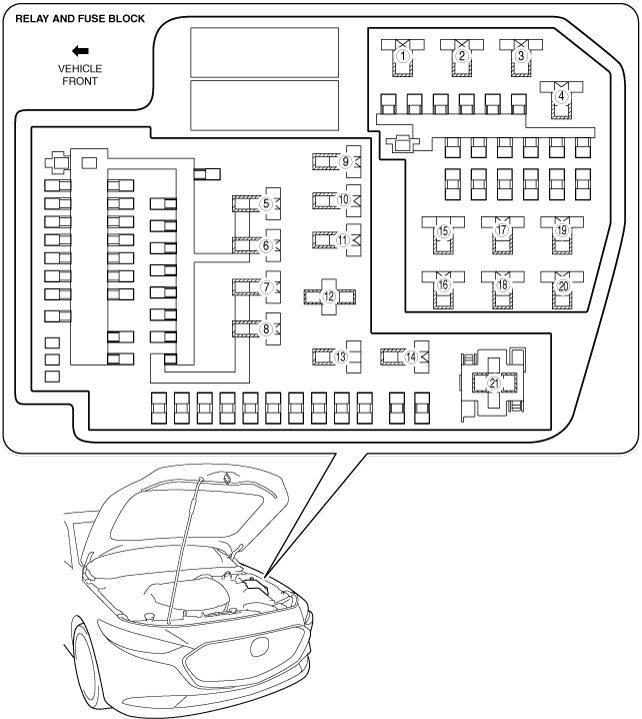

SKYACTIV-X
am3zzw00030914
|
|
1
|
Windshield wiper de-icer relay
|
|
2
|
Headlight cleaner relay
|
|
3
|
Main relay
|
|
4
|
Exhaust electric variable valve timing relay
|
|
5
|
IG1 relay No.1
|
|
6
|
IG1 relay No.2
|
|
7
|
Starter relay
|
|
8
|
ACC relay
|
|
9
|
Rear window defogger relay
|
|
10
|
—
|
|
11
|
Horn relay
|
|
12
|
Blower relay
|
|
13
|
—
|
|
14
|
—
|
|
15
|
Injector relay
|
|
16
|
Fuel pump relay
|
|
17
|
Intake electric variable valve timing relay
|
|
18
|
SCU relay
|
|
19
|
A/C relay
|
|
20
|
Electric AT oil pump relay
|
|
21
|
Cooling fan relay
|
