PARKING ASSIST UNIT (ULTRASONIC)

id092200041600


Purpose, Function

•  The parking assist unit (ultrasonic) controls multiple systems based on the input/output signals.
•  The controlled functions are as follows:

Control Table

Control

Content

Reference
Parking sensor system
The parking sensor system detects obstructions in the blind spot (vehicle rear/rear corners) to a wide extent using ultrasonic sensors and notifies the driver of the obstructions using the buzzer.
(See PARKING SENSOR SYSTEM [(E)].)


Construction

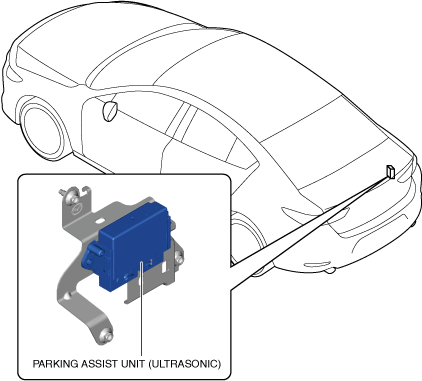

•  The parking assist unit (ultrasonic) is installed inside the trunk end trim.
am3zzn00008560

Operation

•  For the parking assist unit (ultrasonic) operation, refer to the following systems.
―  Parking sensor system(See PARKING SENSOR SYSTEM [(E)])
