EMERGENCY CALL SWITCH [(E)]

id0922000482x2


Purpose

•  Notifies the emergency call unit of the user's emergency call switch operation.
•  The emergency call switch notifies the user of the system operation status using the illumination/flashing pattern of the built-in indicator.

Functions

•  The indicator of the emergency call switch is turned on/flashes in the pattern shown in the following table.

Status

Indicator

Green

Red
Normal (market mode)
—
—
Malfunction (market mode)
—
ON
Diagnosis
ON
ON
Dialing to call center
—
While sending accident information/vehicle information
—
Voice call starts
ON
—
During voice call
ON
—
Connection failed
ON
Normal (factory mode)
Malfunction (factory mode)
ON

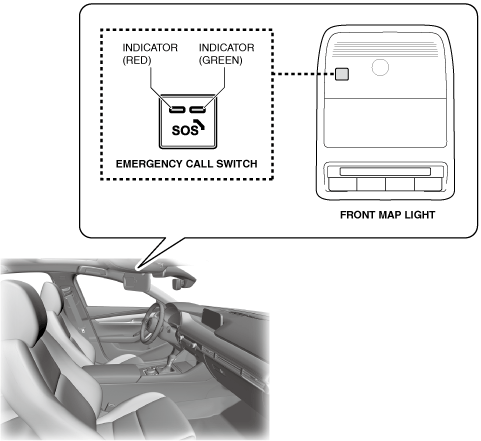

Structure/Construction

•  The emergency call switch is located on the map light.
•  The indicators (green/red) are located on the emergency call switch.
am3zzn00009642

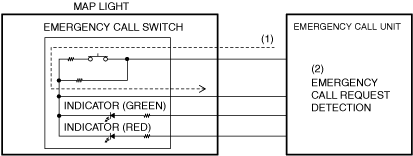

Operation

1.  When the emergency call switch is operated, a switch operation signal is sent (1) to the emergency call unit.

2.  When an emergency call switch ON/OFF signal from the emergency call switch is received, the emergency call unit detects (2) an emergency call request from the user.

am3zzn00010930
