EMERGENCY CALL SPEAKER/MICROPHONE REMOVAL/INSTALLATION

id092200669100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

3.  Remove the screws.

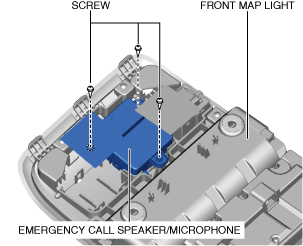

am3zzw00029857

4.  Remove the emergency call speaker/microphone.

5.  Install the reverse order of removal.
