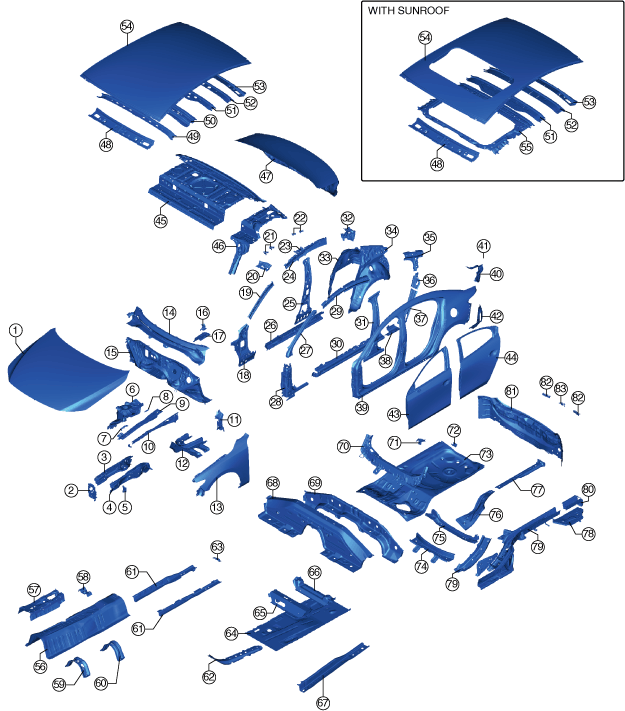

BODY COMPONENTS CONSTRUCTION [(E)]

id0980077397x4


4SD

am3zzb00000759

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}

X:Applied

-:Not applied

Strength (MPa) {kgf/cm2, psi}

X:Applied

-:Not applied

X:Applied

-:Not applied
1
Hood (outer panel)
-
-
X
X
0.70 {0.028}
2
Bumper bracket component
Bumper bracket (upper)
X
590 {6016, 85572}
-
-
2.30 {0.0906}
Bumper bracket (lower)
Inner
-
-
X
X
1.80 {0.0709}
Outer
-
-
X
X
1.80 {0.0709}
3
Front side frame (inner)
X
780 {7954, 113130}
-
X
1.40 {0.0551}
4
Front side frame (outer)
X
590 {6016, 85572}
-
X
1.40 {0.0551}
5
Light bracket
-
-
-
X
1.20 {0.0472}
6
Wheel apron component
Apron reinforcement
Rear
-
-
-
X
1.00 {0.0394}
Front
-
-
X
X
1.00 {0.0394}
Suspension housing (upper)
-
-
X
X
2.00 {0.0787}
Suspension housing reinforcement
X
590 {6016, 85572}
-
X
3.20 {0.126}
Wheel apron panel
Rear
-
-
-
X
1.60 {0.0630}
Front
-
-
-
X
1.20 {0.0472}
Apron reinforcement
Front (upper)
-
-
-
X
1.00 {0.0394}
No.3
-
-
X
X
1.20 {0.0472}
Wheel apron reinforcement (lower)
X
590 {6016, 85572}
-
X
1.20 {0.0472}
Suspension housing (lower)
-
-
-
X
0.80 {0.031}
7
Should upper reinforcement
-
-
-
X
0.60 {0.024}
8
Front fender junction
-
-
-
X
0.60 {0.024}
9
Apron reinforcement (upper) component
Apron reinforcement (upper)
-
-
-
X
1.20 {0.0472}
Apron reinforcement (outer) (upper)
-
-
X
X
0.90 {0.035}
Apron gusset
Front
-
-
-
X
0.80 {0.031}
Rear
-
-
-
X
0.80 {0.031}
10
Cowl side reinforcement (front) component
Cowl side reinforcement (front)
-
-
-
X
0.80 {0.031}
Apron reinforcement (lower) (rear)
X
780 {7954, 113130}
-
X
1.60 {0.0630}
11
Cowl side reinforcement (rear) component
Cowl side reinforcement (rear)
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Front fender bracket
Upper
-
-
-
X
1.20 {0.0472}
Lower
-
-
-
X
1.20 {0.0472}
12
Front frame (rear) component
Torque box
Front
-
-
X
X
1.40 {0.0551}
Rear
-
-
X
X
1.00 {0.0394}
Front frame (rear)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Lower arm bracket
-
-
-
X
1.40 {0.0551}
Front frame (rear) (side)
X
590 {6016, 85572}
-
X
1.40 {0.0551}
13
Front fender panel
-
-
-
X
0.75 {0.0295}
14
Dash and cowl component
Step panel reinforcement
-
-
-
-
1.20 {0.0472}
Dash (upper) panel
-
-
-
X
0.65 {0.0256}
Cowl (upper) reinforcement
-
-
X
-
1.20 {0.0472}
Cowl gusset
-
-
-
-
1.40 {0.0551}
15
Dash (lower) panel component
Dash (lower) panel
Front
-
-
X
X
1.00 {0.0394}
Rear
-
-
X
X
1.60 {0.0630}
Upper
-
-
X
X
1.00 {0.0394}
Dash side reinforcement
-
-
X
X
1.20 {0.0472}
Dash (lower) panel B
X
780 {7954, 113130}
-
X
1.20 {0.0472}
Dash (lower) reinforcement (LH)
X
590 {6016, 85572}
-
-
0.80 {0.031}
Dash (lower) member
-
-
-
X
1.20 {0.0472}
16
Dash upper reinforcement
X
590 {6016, 85572}
-
X
1.80 {0.0709}
17
Cowl upper plate
X
590 {6016, 85572}
-
X
1.80 {0.0709}
18
Hinge pillar (inner) component
Dashboard bracket
X
590 {6016, 85572}
-
-
2.00 {0.0787}
Hinge pillar (inner)
X
1,180 {12032, 171145}
-
X
1.60 {0.0630}
19
Front pillar (inner)
X
1,310 {13358, 190000}
-
-
1.40 {0.0551}
20
Front pillar upper reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
21
Nut plate (front)
-
-
-
-
1.20 {0.0472}
22
Nut plate (rear)
-
-
-
-
1.20 {0.0472}
23
Roof corner gusset
X
590 {6016, 85572}
-
-
1.40 {0.0551}
24
Roof rail (inner)
X
1,310 {13358, 190000}
-
-
1.20 {0.0472}
25
Center pillar (inner) component
Upper
X
590 {6016, 85572}
-
-
1.40 {0.0551}
Center
-
-
X
-
0.80 {0.031}
Lower
-
-
X
X
1.60 {0.0630}
26
Side sill (inner) component
Side sill (inner, front)
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Side sill (inner, rear)
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Side sill reinforcement
Inner, front
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
Inner, rear
X
980 {9993, 142137}
-
-
2.00 {0.0787}
Upper
-
-
-
-
1.60 {0.0630}
No.1
-
-
-
X
1.80 {0.0709}
No.2
X
980 {9993, 142137}
-
X
1.00 {0.0394}
No.3
X
980 {9993, 142137}
-
X
1.20 {0.0472}
No.4
X
980 {9993, 142137}
-
X
1.20 {0.0472}
No.6
X
980 {9993, 142137}
-
X
1.00 {0.0394}
27
Front pillar reinforcement
X
1,180 {12032, 171145}
-
-
1.80 {0.0709}
28
Hinge reinforcement component
Hinge reinforcement
X
1,310 {13358, 190000}
-
-
1.60 {0.0630}
Hinge reinforcement (inner)
Upper
X
1,180 {12032, 171145}
-
-
1.60 {0.0630}
Lower
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Hinge gusset
-
-
-
-
2.00 {0.0787}
Hinge pillar reinforcement
X
1,180 {12032, 171145}
-
-
2.00 {0.0787}
29
Roof rail reinforcement component
Roof rail reinforcement
X
1,310 {13358, 190000}
-
-
1.40 {0.0551}
Roof rail gusset
-
-
-
-
0.80 {0.031}
30
Side sill reinforcement component
Front side sill (outer)
-
-
-
X
1.20 {0.0472}
Side sill (outer)
X
1,180 {12032, 171145}
-
X
1.20 {0.0472}
Side sill reinforcement
X
1,180 {12032, 171145}
-
X
1.20 {0.0472}
Side sill reinforcement (inner, center)
X
980 {9993, 142137}
-
-
0.80 {0.031}
Side sill gusset
No.1
X
980 {9993, 142137}
-
X
1.20 {0.0472}
No.2
X
980 {9993, 142137}
-
-
1.40 {0.0551}
No.3
X
980 {9993, 142137}
-
-
1.40 {0.0551}
No.4
X
980 {9993, 142137}
-
X
1.20 {0.0472}
31
Center pillar reinforcement component
Center pillar reinforcement
X
1,500 {15296, 217557}
-
-
1.80 {0.0709}
Center pillar reinforcement (inner)
X
1,180 {12032, 171145}
-
-
2.00 {0.0787}
32
Roof rail (inner, rear)
-
-
-
X
0.65 {0.0256}
33
Wheel housing (inner) component
Wheel housing (inner)
-
-
-
X
0.65 {0.0256}
Suspension housing (upper)
-
-
X
X
2.60 {0.102}
Seal plate
-
-
X
X
1.00 {0.0394}
34
Rear pillar (inner) component
Rear pillar (inner)
-
-
-
X
0.65 {0.0256}
Wheel housing (outer)
-
-
-
X
0.60 {0.024}
35
C-pllar reinforcement (upper) component
C-pillar reinforcement (upper)
-
-
X
-
1.00 {0.0394}
Roof rail (rear) reinforcement
X
780 {7954, 113130}
-
-
0.90 {0.035}
36
C-pillar reinforcement (center)
-
-
X
-
1.20 {0.0472}
37
C-pillar reinforcement (lower)
X
590 {6016, 85572}
-
-
0.70 {0.028}
38
Side sill reinforcement (rear)
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
39
Cabin side frame (outer) component
-
-
-
X
0.65 {0.0256}
40
Rear fender rain rail component
Corner plate
Upper
-
-
-
X
0.65 {0.0256}
Lower
-
-
-
X
0.65 {0.0256}
Rear fender rain rail
-
-
-
X
0.65 {0.0256}
41
Trim bracket
-
-
-
-
1.40 {0.0551}
42
Rear fender (lower) panel
-
-
-
X
0.65 {0.0256}
43
Front door (outer) panel
-
-
X
X
0.65 {0.0256}
44
Rear door (outer) panel
-
-
X
X
0.65 {0.0256}
45
Package tray component
Package member
Front
-
-
-
-
0.55 {0.022}
Rear
-
-
-
-
0.60 {0.024}
Package tray
-
-
-
-
0.55 {0.022}
46
Package junction component
Package junction
-
-
-
-
0.90 {0.035}
Package gusset
Upper
-
-
-
-
0.90 {0.035}
Lower
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Package reinforcement
-
-
-
-
0.90 {0.035}
Side brace
Upper
-
-
-
-
1.20 {0.0472}
Lower
-
-
-
-
1.40 {0.0551}
47
Trunk lid (outer) panel
-
-
-
X
0.65 {0.0256}
48
Front header component
Front header
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Header reinforcement
-
-
-
-
0.70 {0.028}
49
Roof reinforcement No.1 (without sunroof)
-
-
-
-
0.50 {0.0197}
50
Roof reinforcement No.2
Without sunroof
X
1,180 {12032, 171145}
-
-
0.90 {0.035}
With sunroof
X
780 {7954, 113130}
-
-
1.40 {0.0551}
51
Roof reinforcement No.3
-
-
-
-
0.50 {0.0197}
52
Roof reinforcement No.4
-
-
-
-
0.50 {0.0197}
53
Rear header
-
-
-
-
0.70 {0.028}
54
Roof panel
-
-
-
-
0.70 {0.028}
55
Fixing plate component (with sunroof)
Fixing plate
-
-
X
-
1.80 {0.0709}
Fixing reinforcement
X
590 {6016, 85572}
-
-
2.30 {0.0906}
Front roof set bracket
-
-
X
-
1.40 {0.0551}
Rear roof set bracket
-
-
X
-
1.40 {0.0551}
56
Tunnel reinforcement (front)
X
590 {6016, 85572}
-
X
0.90 {0.035}
57
Dashboard bracket component
Dashboard bracket
X
590 {6016, 85572}
-
-
0.90 {0.035}
Change reinforcement
X
590 {6016, 85572}
-
-
0.80 {0.031}
58
Anchor reinforcement
-
-
-
-
0.80 {0.031}
59
Main floor crossmember component
Main floor crossmember
-
-
X
X
0.70 {0.028}
Silencer bracket
-
-
X
X
1.60 {0.0630}
60
Tunnel reinforcement (rear)
-
-
-
-
0.70 {0.028}
61
Floor reinforcement (lower) component
Floor reinforcement (lower)
X
780 {7954, 113130}
-
X
0.80 {0.031}
Mounting bracket
Front
-
-
-
X
0.70 {0.028}
Rear
-
-
-
X
0.70 {0.028}
62
Floor B reinforcement component
Floor B reinforcement
Front
X
1,500 {15296, 217557}
-
-
1.60 {0.0630}
Rear
X
590 {6016, 85572}
-
-
0.90 {0.035}
63
Converter unit bracket component
Converter bracket (LH)
-
-
-
-
0.70 {0.028}
Converter unit bracket (RH)
-
-
-
-
0.70 {0.028}
64
Front floor side panel
X
590 {6016, 85572}
-
X
0.65 {0.0256}
65
Crossmember No.2 component
Crossmember No.2
LH
X
980 {9993, 142137}
-
-
0.90 {0.035}
RH
X
1,310 {13358, 190000}
-
-
1.00 {0.0394}
Crossmember gusset
-
-
-
-
0.90 {0.035}
Seat bracket reinforcement
LH
-
-
X
-
2.00 {0.0787}
RH
X
780 {7954, 113130}
-
-
2.00 {0.0787}
66
Crossmember No.2.5 component
Crossmember No.2.5
LH
X
980 {9993, 142137}
-
-
0.90 {0.035}
RH
X
1,180 {12032, 171145}
-
-
1.00 {0.0394}
Seat bracket No.1
-
-
-
-
2.00 {0.0787}
Seat bracket No.2
-
-
-
-
2.30 {0.0906}
67
Front B frame
X
980 {9993, 142137}
-
X
1.00 {0.0394}
68
Crossmember No.3 (upper) component
Crossmember No.3 (upper)
Upper
X
1,180 {12032, 171145}
-
-
1.20 {0.0472}
Center
X
590 {6016, 85572}
-
X
0.80 {0.031}
Lower
X
590 {6016, 85572}
-
X
0.80 {0.031}
Crossmember reinforcement
-
-
-
X
1.20 {0.0472}
Crossmember No.3 reinforcement
X
590 {6016, 85572}
-
-
1.60 {0.0630}
Reinforcement
-
-
-
X
0.60 {0.024}
69
Crossmember No.3 (lower) component
Crossmember No.3 (lower)
-
-
-
X
0.60 {0.024}
Crossmember No.3 gusset
No.1
-
-
-
X
0.60 {0.024}
No.2 (LH)
-
-
-
X
0.80 {0.031}
Tank bracket
-
-
X
X
1.80 {0.0709}
70
Crossmember No.4 (upper) component
Crossmember No.4 (upper)
-
-
X
-
0.90 {0.035}
Front brace reinforcement
-
-
-
-
2.30 {0.0906}
Rear brace reinforcement
-
-
-
-
0.90 {0.035}
Seat hinge reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Anchor bracket
X
590 {6016, 85572}
-
-
1.80 {0.0709}
71
Jack bracket
-
-
-
-
1.00 {0.0394}
72
Fuel tank bracket
-
-
-
X
1.00 {0.0394}
73
Rear floor panel component
Rear floor panel
-
-
-
X
0.60 {0.024}
Spare wheel bracket
-
-
-
-
1.00 {0.0394}
74
Crossmember No.4 lower (front) component
Crossmember No.4 lower (front)
-
-
X
X
1.20 {0.0472}
Crossmember No.4 lower (front) reinforcement
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Anchor reinforcement
X
590 {6016, 85572}
-
X
1.80 {0.0709}
75
Crossmember No.5 component
Crossmember No.5
-
-
-
X
0.60 {0.024}
Crossmember No.5 gusset
-
-
X
X
1.00 {0.0394}
76
Rear side frame (upper)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
77
Floor side panel No.1 component
Floor side panel No.1
X
590 {6016, 85572}
-
X
0.70 {0.028}
Bumper (upper) bracket
X
590 {6016, 85572}
-
X
2.00 {0.0787}
78
Floor side panel No.2
-
-
-
X
0.65 {0.0256}
79
Rear side frame (front) component
Rear side frame (inner)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Rear side frame
Front
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Center
X
590 {6016, 85572}
-
X
1.40 {0.0551}
Rear suspension housing
-
-
-
X
1.80 {0.0709}
Suspension housing reinforcement
-
-
-
X
1.80 {0.0709}
Rear frame reinforcement
Front
X
980 {9993, 142137}
-
X
2.30 {0.0906}
Rear
X
780 {7954, 113130}
-
X
1.00 {0.0394}
Rear frame gusset
-
-
-
X
0.90 {0.035}
Gusset
-
-
-
X
1.80 {0.0709}
Rear frame gusset
-
-
-
-
1.60 {0.0630}
Side sill(inner, rear)
X
780 {7954, 113130}
-
X
1.40 {0.0551}
Rear frame gusset
-
-
-
X
1.00 {0.0394}
Crossmember No.4 junction
-
-
-
X
1.60 {0.0630}
Reinforcement
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear frame (inner) reinforcement
X
980 {9993, 142137}
-
X
1.40 {0.0551}
Rear frame gusset
-
-
-
X
0.60 {0.024}
Frame reinforcement
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear frame gusset
-
-
-
X
1.20 {0.0472}
80
Rear side frame (rear) component
Rear side frame (rear)
X
590 {6016, 85572}
-
X
1.20 {0.0472}
Bumper (lower) bracket
X
980 {9993, 142137}
-
X
2.30 {0.0906}
81
Rear end panel component
Rear end panel
-
-
-
X
0.60 {0.024}
Rear end member
-
-
-
X
0.65 {0.0256}
Rear end member reinforcement
-
-
-
-
0.70 {0.028}
Rear bumper bracket No.2
-
-
-
X
0.70 {0.028}
Antenna reinforcement (LH)
-
-
-
X
1.00 {0.0394}
Rear end panel center reinforcement
-
-
X
X
1.20 {0.0472}
82
Rear bumper reinforcement
-
-
-
X
1.00 {0.0394}
83
Rear bumper bracket No.1
-
-
-
X
1.00 {0.0394}


5HB

Except European (L.H.D.) specs.

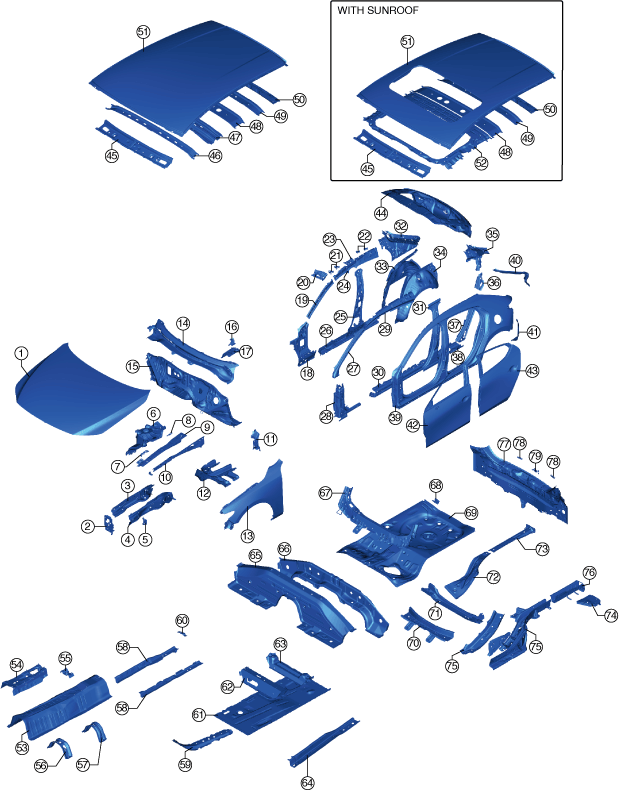

am3zzb00000736

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}

X:Applied

-:Not applied

Strength (MPa) {kgf/cm2, psi}

X:Applied

-:Not applied

X:Applied

-:Not applied
1
Hood (outer panel)
-
-
X
X
0.70 {0.028}
2
Bumper bracket component
Bumper bracket (upper)
X
590 {6016, 85572}
-
-
2.30 {0.0906}
Bumper bracket (lower)
Inner
-
-
X
X
1.80 {0.0709}
Outer
-
-
X
X
1.80 {0.0709}
3
Front side frame (inner)
X
780 {7954, 113130}
-
X
1.40 {0.0551}
4
Front side frame (outer)
X
590 {6016, 85572}
-
X
1.40 {0.0551}
5
Light bracket
-
-
-
X
1.20 {0.0472}
6
Wheel apron component
Apron reinforcement
Rear
-
-
-
X
1.00 {0.0394}
Front
-
-
X
X
1.00 {0.0394}
Suspension housing (upper)
-
-
X
X
2.00 {0.0787}
Suspension housing reinforcement
X
590 {6016, 85572}
-
X
3.20 {0.126}
Wheel apron panel
Rear
-
-
-
X
1.60 {0.0630}
Front
-
-
-
X
1.20 {0.0472}
Apron reinforcement
Front (upper)
-
-
-
X
1.00 {0.0394}
No.3
-
-
X
X
1.20 {0.0472}
Wheel apron reinforcement (lower)
X
590 {6016, 85572}
-
X
1.20 {0.0472}
Suspension housing (lower)
-
-
-
X
0.80 {0.031}
7
Should upper reinforcement
-
-
-
X
0.60 {0.024}
8
Front fender junction
-
-
-
X
0.60 {0.024}
9
Apron reinforcement (upper) component
Apron reinforcement (upper)
-
-
-
X
1.20 {0.0472}
Apron reinforcement (outer) (upper)
-
-
X
X
0.90 {0.035}
Apron gusset
Front
-
-
-
X
0.80 {0.031}
Rear
-
-
-
X
0.80 {0.031}
10
Cowl side reinforcement (front) component
Cowl side reinforcement (front)
-
-
-
X
0.80 {0.031}
Apron reinforcement (lower) (rear)
X
780 {7954, 113130}
-
X
1.60 {0.0630}
11
Cowl side reinforcement (rear) component
Cowl side reinforcement (rear)
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Front fender bracket
Upper
-
-
-
X
1.20 {0.0472}
Lower
-
-
-
X
1.20 {0.0472}
12
Front frame (rear) component
Torque box
Front
-
-
X
X
1.40 {0.0551}
Rear
-
-
X
X
1.00 {0.0394}
Front frame (rear)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Lower arm bracket
-
-
-
X
1.40 {0.0551}
Front frame (rear) (side)
X
590 {6016, 85572}
-
X
1.40 {0.0551}
13
Front fender panel
-
-
-
X
0.75 {0.0295}
14
Dash and cowl component
Step panel reinforcement
-
-
-
-
1.20 {0.0472}
Dash (upper) panel
-
-
-
X
0.65 {0.0256}
Cowl (upper) reinforcement
-
-
X
-
1.20 {0.0472}
Cowl gusset
-
-
-
-
1.40 {0.0551}
15
Dash (lower) panel component
Dash (lower) panel
Front
-
-
X
X
1.00 {0.0394}
Rear
-
-
X
X
1.60 {0.0630}
Upper
-
-
X
X
1.00 {0.0394}
Dash side reinforcement
-
-
X
X
1.20 {0.0472}
Dash (lower) panel B
X
780 {7954, 113130}
-
X
1.20 {0.0472}
Dash (lower) reinforcement (LH)
X
590 {6016, 85572}
-
-
0.80 {0.031}
Dash (lower) member
-
-
-
X
1.20 {0.0472}
16
Dash upper reinforcement
X
590 {6016, 85572}
-
X
1.80 {0.0709}
17
Cowl upper plate
X
590 {6016, 85572}
-
X
1.80 {0.0709}
18
Hinge pillar (inner) component
Dashboard bracket
X
590 {6016, 85572}
-
-
2.00 {0.0787}
Hinge pillar (inner)
X
1,180 {12032, 171145}
-
X
1.60 {0.0630}
19
Front pillar (inner)
X
1,310 {13358, 190000}
-
-
1.40 {0.0551}
20
Front pillar upper reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
21
Nut plate (front)
-
-
-
-
1.20 {0.0472}
22
Nut plate (rear)
-
-
-
-
1.20 {0.0472}
23
Roof corner gusset
X
590 {6016, 85572}
-
-
1.40 {0.0551}
24
Roof rail (inner)
X
1,310 {13358, 190000}
-
-
1.20 {0.0472}
25
Center pillar (inner) component
Upper
X
590 {6016, 85572}
-
-
1.40 {0.0551}
Center
-
-
X
-
0.80 {0.031}
Lower
-
-
X
X
1.60 {0.0630}
26
Side sill (inner) component
Side sill (inner, front)
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Side sill (inner, rear)
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Side sill reinforcement
Inner, front
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
Inner, rear
X
980 {9993, 142137}
-
-
2.00 {0.0787}
upper
-
-
-
-
1.60 {0.0630}
No.1
-
-
-
X
1.80 {0.0709}
No.2
X
980 {9993, 142137}
-
X
1.00 {0.0394}
No.3
X
980 {9993, 142137}
-
X
1.20 {0.0472}
No.4
X
980 {9993, 142137}
-
X
1.20 {0.0472}
No.6
X
980 {9993, 142137}
-
X
1.00 {0.0394}
27
Front pillar reinforcement
X
1,180 {12032, 171145}
-
-
1.80 {0.0709}
28
Hinge reinforcement component
Hinge reinforcement
X
1,310 {13358, 190000}
-
-
1.60 {0.0630}
Hinge reinforcement (inner)
Upper
X
1,180 {12032, 171145}
-
-
1.60 {0.0630}
Lower
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Hinge gusset
-
-
-
-
2.00 {0.0787}
Hinge pillar reinforcement
X
1,180 {12032, 171145}
-
-
2.00 {0.0787}
29
Roof rail reinforcement component
Roof rail reinforcement
X
1,310 {13358, 190000}
-
-
1.40 {0.0551}
Roof rail gusset
-
-
-
-
0.80 {0.031}
30
Side sill reinforcement component
Front side sill (outer)
-
-
-
X
1.20 {0.0472}
Side sill (outer)
X
1,180 {12032, 171145}
-
X
1.20 {0.0472}
Side sill reinforcement
X
1,180 {12032, 171145}
-
X
1.20 {0.0472}
Side sill reinforcement (inner, center)
X
980 {9993, 142137}
-
-
0.80 {0.031}
Side sill gusset
No.1
X
980 {9993, 142137}
-
X
1.20 {0.0472}
No.2
X
980 {9993, 142137}
-
-
1.40 {0.0551}
No.3
X
980 {9993, 142137}
-
-
1.40 {0.0551}
No.4
X
980 {9993, 142137}
-
X
1.20 {0.0472}
31
Center pillar reinforcement component
Center pillar reinforcement
X
1,500 {15296, 217557}
-
-
1.80 {0.0709}
Center pillar reinforcement (inner)
X
1,180 {12032, 171145}
-
-
2.00 {0.0787}
32
C-pillar reinforcement (rear) component
Rear pillar (inner)
-
-
-
X
0.65 {0.0256}
Roof rail (inner)
-
-
-
X
0.65 {0.0256}
Corner plate (upper)
X
590 {6016, 85572}
-
-
1.40 {0.0551}
Rear side panel
-
-
-
X
0.65 {0.0256}
Corner junction
-
-
-
-
0.70 {0.028}
Anchor plate nut
-
-
-
-
1.00 {0.0394}
33
Wheel housing (inner) component
Wheel housing (inner)
-
-
-
X
0.65 {0.0256}
Suspension housing (upper)
-
-
X
X
2.60 {0.102}
Seal plate
-
-
X
X
1.00 {0.0394}
Trunk side gusset
-
-
-
-
0.80 {0.031}
Side brace
-
-
-
-
1.40 {0.0551}
34
Wheel housing (outer)
-
-
-
X
0.60 {0.024}
35
C-pllar reinforcement (upper) component
C-pillar reinforcement (upper)
-
-
X
-
1.00 {0.0394}
Roof rail (rear) reinforcement
X
780 {7954, 113130}
-
-
0.90 {0.035}
D-pillar reinforcement (upper)
-
-
-
-
0.90 {0.035}
36
C-pillar reinforcement (center)
-
-
X
-
1.20 {0.0472}
37
C-pillar reinforcement (lower)
X
590 {6016, 85572}
-
-
0.70 {0.028}
38
Side sill reinforcement (rear)
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
39
Cabin side frame (outer)
-
-
-
X
0.65 {0.0256}
40
Rear pillar (outer) component
Corner plate
Outer
-
-
-
X
0.75 {0.0295}
Inner
-
-
-
X
0.65 {0.0256}
Rear pillar (outer)
-
-
-
X
0.65 {0.0256}
41
Rear fender (lower) panel
-
-
-
X
0.65 {0.0256}
42
Front door (outer) panel
-
-
X
X
0.65 {0.0256}
43
Rear door (outer) panel
-
-
X
X
0.65 {0.0256}
44
Liftgate (outer) panel
-
-
-
X
0.70 {0.028}
45
Front header component
Front header
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Header reinforcement
-
-
-
-
0.70 {0.028}
46
Roof reinforcement No.1 (without sunroof)
-
-
-
-
0.50 {0.0197}
47
Roof reinforcement No.2
Without sunroof
X
1,180 {12032, 171145}
-
-
0.90 {0.035}
With sunroof
X
780 {7954, 113130}
-
-
1.40 {0.0551}
48
Roof reinforcement No.3
-
-
-
-
0.50 {0.0197}
49
Roof reinforcement No.4
-
-
-
-
0.50 {0.0197}
50
Rear header component
Rear header
-
-
-
X
0.70 {0.028}
Hinge reinforcement
-
-
-
-
1.40 {0.0551}
Rear header (upper)
-
-
-
-
0.60 {0.024}
51
Roof panel
-
-
-
-
0.70 {0.028}
52
Fixing plate component (with sunroof)
Fixing plate
-
-
X
-
1.80 {0.0709}
Fixing reinforcement
X
590 {6016, 85572}
-
-
2.30 {0.0906}
Front roof set bracket
-
-
X
-
1.40 {0.0551}
Rear roof set bracket
-
-
X
-
1.40 {0.0551}
53
Tunnel reinforcement (front)
X
590 {6016, 85572}
-
X
0.90 {0.035}
54
Dashboard bracket component
Dashboard bracket
X
590 {6016, 85572}
-
-
0.90 {0.035}
Change reinforcement
X
590 {6016, 85572}
-
-
0.80 {0.031}
55
Anchor reinforcement
-
-
-
-
0.80 {0.031}
56
Main floor crossmember component
Main floor crossmember
-
-
X
X
0.70 {0.028}
Silencer bracket
-
-
X
X
1.60 {0.0630}
57
Tunnel reinforcement (rear)
-
-
-
-
0.70 {0.028}
58
Floor reinforcement (lower) component
Floor reinforcement (lower)
X
780 {7954, 113130}
-
X
0.80 {0.031}
Mounting bracket
Front
-
-
-
X
0.70 {0.028}
Rear
-
-
-
X
0.70 {0.028}
59
Floor B reinforcement component
Floor B reinforcement
Front
X
1,500 {15296, 217557}
-
-
1.60 {0.0630}
Rear
X
590 {6016, 85572}
-
-
0.90 {0.035}
60
Converter unit bracket component
Converter bracket (LH)
-
-
-
-
0.70 {0.028}
Converter unit bracket (RH)
-
-
-
-
0.70 {0.028}
61
Front floor side panel
X
590 {6016, 85572}
-
X
0.65 {0.0256}
62
Crossmember No.2 component
Crossmember No.2
LH
X
980 {9993, 142137}
-
-
0.90 {0.035}
RH
X
1,310 {13358, 190000}
-
-
1.00 {0.0394}
Crossmember gusset
-
-
-
-
0.90 {0.035}
Seat bracket reinforcement
LH
-
-
X
-
2.00 {0.0787}
RH
X
780 {7954, 113130}
-
-
2.00 {0.0787}
63
Crossmember No.2.5 component
Crossmember No.2.5
LH
X
980 {9993, 142137}
-
-
0.90 {0.035}
RH
X
1,180 {12032, 171145}
-
-
1.00 {0.0394}
Seat bracket No.1
-
-
-
-
2.00 {0.0787}
Seat bracket No.2
-
-
-
-
2.30 {0.0906}
64
Front B frame
X
980 {9993, 142137}
-
X
1.00 {0.0394}
65
Crossmember No.3 upper component
Crossmember No.3 upper
Upper
X
1,180 {12032, 171145}
-
-
1.20 {0.0472}
Center
X
590 {6016, 85572}
-
X
0.80 {0.031}
Lower
X
590 {6016, 85572}
-
X
0.80 {0.031}
Crossmember reinforcement
-
-
-
X
1.20 {0.0472}
Crossmember No.3 reinforcement
X
590 {6016, 85572}
-
-
1.60 {0.0630}
Reinforcement
-
-
-
X
0.60 {0.024}
66
Crossmember No.3 lower component
Crossmember No.3 lower
-
-
-
X
0.60 {0.024}
Crossmember No.3 gusset
No.1
-
-
-
X
0.60 {0.024}
No.2 (LH)
-
-
-
X
0.80 {0.031}
Tank bracket
-
-
X
X
1.80 {0.0709}
67
Crossmember No.4 upper component
Crossmember No.4 upper
-
-
X
-
0.90 {0.035}
Front brace reinforcement
-
-
-
-
2.30 {0.0906}
Rear brace reinforcement
-
-
-
-
0.90 {0.035}
Seat hinge reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Anchor bracket
X
590 {6016, 85572}
-
-
1.80 {0.0709}
68
Fuel tank bracket
-
-
-
X
1.00 {0.0394}
69
Rear floor panel component
Rear floor panel
-
-
-
X
0.60 {0.024}
Spare wheel bracket
-
-
-
-
1.00 {0.0394}
70
Crossmember No.4 lower component
Crossmember No.4 lower
-
-
X
X
1.20 {0.0472}
Crossmember No.4 lower reinforcement
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Anchor reinforcement
X
590 {6016, 85572}
-
X
1.80 {0.0709}
71
Crossmember No.5 component
Crossmember No.5
-
-
-
X
0.60 {0.024}
Crossmember No.5 gusset
-
-
X
X
1.00 {0.0394}
72
Rear side frame (upper)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
73
Floor side panel No.1 component
Floor side panel No.1
X
590 {6016, 85572}
-
X
0.70 {0.028}
Bumper (upper) bracket
X
590 {6016, 85572}
-
X
2.00 {0.0787}
74
Floor side panel No.2
-
-
-
X
0.60 {0.024}
75
Rear side frame (front) component
Rear side frame (inner)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Rear side frame (front)
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear suspension housing
-
-
-
X
1.80 {0.0709}
Suspension housing reinforcement
-
-
-
X
1.80 {0.0709}
Rear frame reinforcement (front)
X
980 {9993, 142137}
-
X
2.30 {0.0906}
Rear frame gusset
-
-
-
X
0.90 {0.035}
Gusset
-
-
-
X
1.80 {0.0709}
Rear frame gusset
-
-
-
-
1.60 {0.0630}
Side sill (inner, rear)
X
780 {7954, 113130}
-
X
1.40 {0.0551}
Rear frame gusset
-
-
-
X
1.00 {0.0394}
Crossmember No.4 junction
-
-
-
X
1.60 {0.0630}
Reinforcement
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear frame (inner) reinforcement
X
980 {9993, 142137}
-
X
1.40 {0.0551}
Rear frame gusset
-
-
-
X
0.60 {0.024}
Frame reinforcement
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear frame gusset
-
-
-
X
1.20 {0.0472}
76
Rear side frame (rear) component
Rear side frame (center)
X
590 {6016, 85572}
-
X
1.40 {0.0551}
Rear frame reinforcement (rear)
X
780 {7954, 113130}
-
X
1.00 {0.0394}
Bumper (lower) bracket
X
980 {9993, 142137}
-
X
2.30 {0.0906}
77
Rear end panel component
Rear end panel
-
-
-
X
0.60 {0.024}
Rear end member
Center
-
-
-
-
0.60 {0.024}
Side
-
-
-
X
0.65 {0.0256}
Rear end member reinforcement
Side
-
-
-
X
0.65 {0.0256}
Inner
-
-
-
-
0.70 {0.028}
Rear bumper bracket No.2
-
-
-
X
0.70 {0.028}
Rear bumper reinforcement
-
-
X
X
1.20 {0.0472}
Antenna reinforcement (LH)
-
-
-
X
1.00 {0.0394}
Rear end panel center reinforcement
-
-
X
X
1.20 {0.0472}
78
Rear bumper reinforcement
-
-
-
X
1.00 {0.0394}
79
Rear bumper bracket No.1
-
-
-
X
1.00 {0.0394}

European (L.H.D.) specs.

am3zzb00000736

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}

X:Applied

-:Not applied

Strength (MPa) {kgf/cm2, psi}

X:Applied

-:Not applied

X:Applied

-:Not applied
1
Hood (outer panel)
-
-
X
X
0.70 {0.028}
2
Bumper bracket component
Bumper bracket (upper)
X
590 {6016, 85572}
-
-
2.30 {0.0906}
Bumper bracket (lower)
Inner
-
-
X
X
1.80 {0.0709}
Outer
-
-
X
X
1.80 {0.0709}
3
Front side frame (inner)
X
780 {7954, 113130}
-
X
1.40 {0.0551}
4
Front side frame (outer)
X
590 {6016, 85572}
-
X
1.40 {0.0551}
5
Light bracket
-
-
-
X
1.20 {0.0472}
6
Wheel apron component
Apron reinforcement
Rear
-
-
-
X
1.00 {0.0394}
Front
-
-
X
X
1.00 {0.0394}
Suspension housing (upper)
-
-
X
X
2.00 {0.0787}
Suspension housing reinforcement
X
590 {6016, 85572}
-
X
3.20 {0.126}
Wheel apron panel
Rear
-
-
-
X
1.60 {0.0630}
Front
-
-
-
X
1.20 {0.0472}
Apron reinforcement
Front (upper)
-
-
-
X
1.00 {0.0394}
No.3
-
-
X
X
1.20 {0.0472}
Wheel apron reinforcement (lower)
X
590 {6016, 85572}
-
X
1.20 {0.0472}
Suspension housing (lower)
-
-
-
X
0.80 {0.031}
7
Should upper reinforcement
-
-
-
X
0.60 {0.024}
8
Front fender junction
-
-
-
X
0.60 {0.024}
9
Apron reinforcement (upper) component
Apron reinforcement (upper)
-
-
-
X
1.20 {0.0472}
Apron reinforcement (outer) (upper)
-
-
X
X
0.90 {0.035}
Apron gusset
Front
-
-
-
X
0.80 {0.031}
Rear
-
-
-
X
0.80 {0.031}
10
Cowl side reinforcement (front) component
Cowl side reinforcement (front)
-
-
-
X
0.80 {0.031}
Apron reinforcement (lower) (rear)
X
780 {7954, 113130}
-
X
1.60 {0.0630}
11
Cowl side reinforcement (rear) component
Cowl side reinforcement (rear)
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Front fender bracket
Upper
-
-
-
X
1.20 {0.0472}
Lower
-
-
-
X
1.20 {0.0472}
12
Front frame (rear) component
Torque box
Front
-
-
X
X
1.40 {0.0551}
Rear
-
-
X
X
1.00 {0.0394}
Front frame (rear)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Lower arm bracket
-
-
-
X
1.40 {0.0551}
Front frame (rear) (side)
X
590 {6016, 85572}
-
X
1.40 {0.0551}
13
Front fender panel
-
-
-
X
0.75 {0.0295}
14
Dash and cowl component
Step panel reinforcement
-
-
-
-
1.20 {0.0472}
Dash (upper) panel
-
-
-
X
0.65 {0.0256}
Cowl (upper) reinforcement
-
-
X
-
1.20 {0.0472}
Cowl gusset
-
-
-
-
1.40 {0.0551}
15
Dash (lower) panel component
Dash (lower) panel
Front
-
-
X
X
1.00 {0.0394}
Rear
-
-
X
X
1.60 {0.0630}
Upper
-
-
X
X
1.00 {0.0394}
Dash side reinforcement
-
-
X
X
1.20 {0.0472}
Dash (lower) panel B
X
780 {7954, 113130}
-
X
1.20 {0.0472}
Dash (lower) reinforcement (LH)
X
590 {6016, 85572}
-
-
0.80 {0.031}
Dash (lower) member
-
-
-
X
1.20 {0.0472}
16
Dash upper reinforcement
X
590 {6016, 85572}
-
X
1.80 {0.0709}
17
Cowl upper plate
X
590 {6016, 85572}
-
X
1.80 {0.0709}
18
Hinge pillar (inner) component
Dashboard bracket
X
590 {6016, 85572}
-
-
2.00 {0.0787}
Hinge pillar (inner)
X
1,180 {12032, 171145}
-
X
1.60 {0.0630}
19
Front pillar (inner)
X
1,310 {13358, 190000}
-
-
1.40 {0.0551}
20
Front pillar upper reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
21
Nut plate (front)
-
-
-
-
1.20 {0.0472}
22
Nut plate (rear)
-
-
-
-
1.20 {0.0472}
23
Roof corner gusset
X
590 {6016, 85572}
-
-
1.40 {0.0551}
24
Roof rail (inner)
X
1,310 {13358, 190000}
-
-
1.20 {0.0472}
25
Center pillar (inner) component
Upper
X
590 {6016, 85572}
-
-
1.40 {0.0551}
Center
-
-
X
-
0.80 {0.031}
Lower
-
-
X
X
1.60 {0.0630}
26
Side sill (inner) component
Side sill (inner, front)
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Side sill (inner, rear)
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Side sill reinforcement
Inner, front
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
Inner, rear
X
980 {9993, 142137}
-
-
2.00 {0.0787}
upper
-
-
-
-
1.60 {0.0630}
No.1
-
-
-
X
1.80 {0.0709}
No.2
X
980 {9993, 142137}
-
X
1.00 {0.0394}
No.3
X
980 {9993, 142137}
-
X
1.20 {0.0472}
No.4
X
980 {9993, 142137}
-
X
1.20 {0.0472}
No.6
X
980 {9993, 142137}
-
X
1.00 {0.0394}
27
Front pillar reinforcement
X
1,180 {12032, 171145}
-
-
1.80 {0.0709}
28
Hinge reinforcement component
Hinge reinforcement
X
1,310 {13358, 190000}
-
-
1.60 {0.0630}
Hinge reinforcement (inner)
Upper
X
1,180 {12032, 171145}
-
-
1.60 {0.0630}
Lower
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Hinge gusset
-
-
-
-
2.00 {0.0787}
Hinge pillar reinforcement
X
1,180 {12032, 171145}
-
-
2.00 {0.0787}
29
Roof rail reinforcement component
Roof rail reinforcement
X
1,310 {13358, 190000}
-
-
1.40 {0.0551}
Roof rail gusset
-
-
-
-
0.80 {0.031}
30
Side sill reinforcement component
Front side sill (outer)
-
-
-
X
1.20 {0.0472}
Side sill (outer)
X
1,180 {12032, 171145}
-
X
1.20 {0.0472}
Side sill reinforcement
X
1,180 {12032, 171145}
-
X
1.20 {0.0472}
Side sill reinforcement (inner, center)
X
980 {9993, 142137}
-
-
0.80 {0.031}
Side sill gusset
No.1
X
980 {9993, 142137}
-
X
1.20 {0.0472}
No.2
X
980 {9993, 142137}
-
-
1.40 {0.0551}
No.3
X
980 {9993, 142137}
-
-
1.40 {0.0551}
No.4
X
980 {9993, 142137}
-
X
1.20 {0.0472}
31
Center pillar reinforcement component
Center pillar reinforcement
X
1,500 {15296, 217557}
-
-
1.80 {0.0709}
Center pillar reinforcement (inner)
X
1,180 {12032, 171145}
-
-
2.00 {0.0787}
32
C-pillar reinforcement (rear) component
Rear pillar (inner)
-
-
-
X
0.65 {0.0256}
Roof rail (inner)
-
-
-
X
0.65 {0.0256}
Corner plate (upper)
X
590 {6016, 85572}
-
-
1.40 {0.0551}
Rear side panel
-
-
-
X
0.65 {0.0256}
Corner junction
-
-
-
-
0.70 {0.028}
Anchor plate nut
-
-
-
-
1.00 {0.0394}
33
Wheel housing (inner) component
Wheel housing (inner)
-
-
-
X
0.65 {0.0256}
Suspension housing (upper)
-
-
X
X
2.60 {0.102}
Seal plate
-
-
X
X
1.00 {0.0394}
Trunk side gusset
-
-
-
-
0.80 {0.031}
Side brace
-
-
-
-
1.40 {0.0551}
34
Wheel housing (outer)
-
-
-
X
0.60 {0.024}
35
C-pllar reinforcement (upper) component
C-pillar reinforcement (upper)
-
-
X
-
1.00 {0.0394}
Roof rail (rear) reinforcement
X
780 {7954, 113130}
-
-
0.90 {0.035}
D-pillar reinforcement (upper)
-
-
-
-
0.90 {0.035}
36
C-pillar reinforcement (center)
-
-
X
-
1.20 {0.0472}
37
C-pillar reinforcement (lower)
X
590 {6016, 85572}
-
-
0.70 {0.028}
38
Side sill reinforcement (rear)
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
39
Cabin side frame (outer)
-
-
-
X
0.65 {0.0256}
40
Rear pillar (outer) component
Corner plate
Outer
-
-
-
X
0.75 {0.0295}
Inner
-
-
-
X
0.65 {0.0256}
Rear pillar (outer)
-
-
-
X
0.65 {0.0256}
41
Rear fender (lower) panel
-
-
-
X
0.65 {0.0256}
42
Front door (outer) panel
-
-
X
X
0.65 {0.0256}
43
Rear door (outer) panel
-
-
X
X
0.65 {0.0256}
44
Liftgate (outer) panel
-
-
-
X
0.70 {0.028}
45
Front header component
Front header
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Header reinforcement
-
-
-
-
0.70 {0.028}
46
Roof reinforcement No.1 (without sunroof)
-
-
-
-
0.50 {0.0197}
47
Roof reinforcement No.2
Without sunroof
X
1,180 {12032, 171145}
-
-
0.90 {0.035}
With sunroof
X
780 {7954, 113130}
-
-
1.40 {0.0551}
48
Roof reinforcement No.3
-
-
-
-
0.50 {0.0197}
49
Roof reinforcement No.4
-
-
-
-
0.50 {0.0197}
50
Rear header component
Rear header
-
-
-
X
0.70 {0.028}
Hinge reinforcement
-
-
-
-
1.40 {0.0551}
Rear header (upper)
-
-
-
-
0.60 {0.024}
51
Roof panel
-
-
-
-
0.70 {0.028}
52
Fixing plate component (with sunroof)
Fixing plate
-
-
X
-
1.80 {0.0709}
Fixing reinforcement
X
590 {6016, 85572}
-
-
2.30 {0.0906}
Front roof set bracket
-
-
X
-
1.40 {0.0551}
Rear roof set bracket
-
-
X
-
1.40 {0.0551}
53
Tunnel reinforcement (front)
X
590 {6016, 85572}
-
X
0.90 {0.035}
54
Dashboard bracket component
Dashboard bracket
X
590 {6016, 85572}
-
-
0.90 {0.035}
Change reinforcement
X
590 {6016, 85572}
-
-
0.80 {0.031}
55
Anchor reinforcement
-
-
-
-
0.80 {0.031}
56
Main floor crossmember component
Main floor crossmember
-
-
X
X
0.70 {0.028}
Silencer bracket
-
-
X
X
1.60 {0.0630}
57
Tunnel reinforcement (rear)
-
-
-
-
0.70 {0.028}
58
Floor reinforcement (lower) component
Floor reinforcement (lower)
X
780 {7954, 113130}
-
X
0.80 {0.031}
Mounting bracket
Front
-
-
-
X
0.70 {0.028}
Rear
-
-
-
X
0.70 {0.028}
59
Floor B reinforcement component
Floor B reinforcement
Front
X
1,500 {15296, 217557}
-
-
1.60 {0.0630}
Rear
X
590 {6016, 85572}
-
-
0.90 {0.035}
60
Converter unit bracket component
Converter bracket (LH)
-
-
-
-
0.70 {0.028}
Converter unit bracket (RH)
-
-
-
-
0.70 {0.028}
61
Front floor side panel
X
590 {6016, 85572}
-
X
0.65 {0.0256}
62
Crossmember No.2 component
Crossmember No.2
LH
X
980 {9993, 142137}
-
-
0.90 {0.035}
RH
X
1,310 {13358, 190000}
-
-
1.00 {0.0394}
Crossmember gusset
-
-
-
-
0.90 {0.035}
Seat bracket reinforcement
LH
-
-
X
-
2.00 {0.0787}
RH
X
780 {7954, 113130}
-
-
2.00 {0.0787}
63
Crossmember No.2.5 component
Crossmember No.2.5
LH
X
980 {9993, 142137}
-
-
0.90 {0.035}
RH
X
1,180 {12032, 171145}
-
-
1.00 {0.0394}
Seat bracket No.1
-
-
-
-
2.00 {0.0787}
Seat bracket No.2
-
-
-
-
2.30 {0.0906}
64
Front B frame
X
980 {9993, 142137}
-
X
1.00 {0.0394}
65
Crossmember No.3 upper component
Crossmember No.3 upper
Upper
X
1,180 {12032, 171145}
-
-
1.20 {0.0472}
Center
X
590 {6016, 85572}
-
X
0.80 {0.031}
Lower
X
590 {6016, 85572}
-
X
0.80 {0.031}
Crossmember reinforcement
-
-
-
X
1.20 {0.0472}
Crossmember No.3 reinforcement
X
590 {6016, 85572}
-
-
1.60 {0.0630}
Reinforcement
-
-
-
X
0.60 {0.024}
66
Crossmember No.3 lower component
Crossmember No.3 lower
-
-
-
X
0.60 {0.024}
Crossmember No.3 gusset
No.1
-
-
-
X
0.60 {0.024}
No.2 (LH)
-
-
-
X
0.80 {0.031}
Tank bracket
-
-
X
X
1.80 {0.0709}
67
Crossmember No.4 upper component
Crossmember No.4 upper
-
-
X
-
0.90 {0.035}
Front brace reinforcement
-
-
-
-
2.30 {0.0906}
Rear brace reinforcement
-
-
-
-
0.90 {0.035}
Seat hinge reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Anchor bracket
X
590 {6016, 85572}
-
-
1.80 {0.0709}
68
Fuel tank bracket
-
-
-
X
1.00 {0.0394}
69
Rear floor panel component
Rear floor panel
-
-
-
X
0.60 {0.024}
Spare wheel bracket
-
-
-
-
1.00 {0.0394}
70
Crossmember No.4 lower component
Crossmember No.4 lower
-
-
X
X
1.20 {0.0472}
Crossmember No.4 lower reinforcement
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Anchor reinforcement
X
590 {6016, 85572}
-
X
1.80 {0.0709}
71
Crossmember No.5 component
Crossmember No.5
-
-
-
X
0.60 {0.024}
Crossmember No.5 gusset
-
-
X
X
1.00 {0.0394}
72
Rear side frame (upper)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
73
Floor side panel No.1 component
Floor side panel No.1
X
590 {6016, 85572}
-
X
0.70 {0.028}
Bumper (upper) bracket
X
590 {6016, 85572}
-
X
2.00 {0.0787}
74
Floor side panel No.2
-
-
-
X
0.60 {0.024}
75
Rear side frame (front) component
Rear side frame (inner)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Rear side frame (front)
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear suspension housing
-
-
-
X
1.80 {0.0709}
Suspension housing reinforcement
-
-
-
X
1.80 {0.0709}
Rear frame reinforcement (front)
X
980 {9993, 142137}
-
X
2.30 {0.0906}
Rear frame gusset
-
-
-
X
0.90 {0.035}
Gusset
-
-
-
X
1.80 {0.0709}
Rear frame gusset
-
-
-
-
1.60 {0.0630}
Side sill (inner, rear)
X
780 {7954, 113130}
-
X
1.40 {0.0551}
Rear frame gusset
-
-
-
X
1.00 {0.0394}
Crossmember No.4 junction
-
-
-
X
1.60 {0.0630}
Reinforcement
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear frame (inner) reinforcement
X
980 {9993, 142137}
-
X
1.40 {0.0551}
Rear frame gusset
-
-
-
X
0.60 {0.024}
Frame reinforcement
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear frame gusset
-
-
-
X
1.20 {0.0472}
76
Rear side frame (rear) component
Rear side frame (center)
X
590 {6016, 85572}
-
X
1.40 {0.0551}
Rear frame reinforcement (rear)
LH
X
590 {6016, 85572}
-
X
1.00 {0.0394}
RH
X
780 {7954, 113130}
-
X
1.00 {0.0394}
Bumper (lower) bracket
X
980 {9993, 142137}
-
X
2.30 {0.0906}
77
Rear end panel component
Rear end panel
-
-
-
X
0.60 {0.024}
Rear end member
Center
-
-
-
-
0.60 {0.024}
Side
-
-
-
X
0.65 {0.0256}
Rear end member reinforcement
Side
-
-
-
X
0.65 {0.0256}
Inner
-
-
-
-
0.70 {0.028}
Rear bumper bracket No.2
-
-
-
X
0.70 {0.028}
Rear bumper reinforcement
-
-
X
X
1.20 {0.0472}
Antenna reinforcement (LH)
-
-
-
X
1.00 {0.0394}
Rear end panel center reinforcement
-
-
X
X
1.20 {0.0472}
78
Rear bumper reinforcement
-
-
-
X
1.00 {0.0394}
79
Rear bumper bracket No.1
-
-
-
X
1.00 {0.0394}
