REAR DOOR OUTER PANEL REMOVAL [(E)]

id0980085602x4

Symbol Mark

ac5wzb00000386

Removal Procedure

Using remover tool

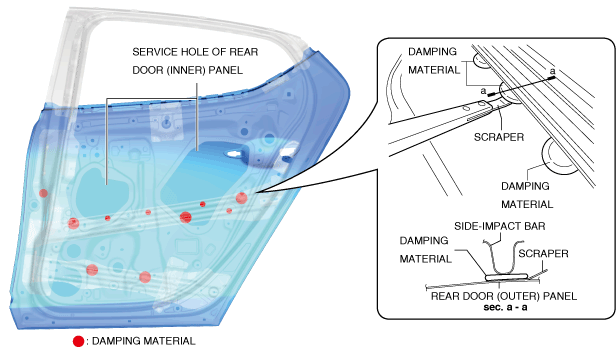

1.  Insert a scraper from the service hole of the rear door (inner) panel, and peel off the damping material shown in the figure from the rear door (outer) panel.

Note

•  Use the scraper along the rear door (outer) panel, and peel off the damping material so that it remains on the side-impact bar side.

4SD

am3zzb00000661

5HB

am3zzb00000682

2.  Drill the spot welds in the 2 locations in area A shown in the figure from the rear door (outer) panel.

Note

•  When drilling the spot welds in the 2 locations in area A shown in the figure, do not drill through-holes in consideration of the workability when installing.

am3zzb00000662

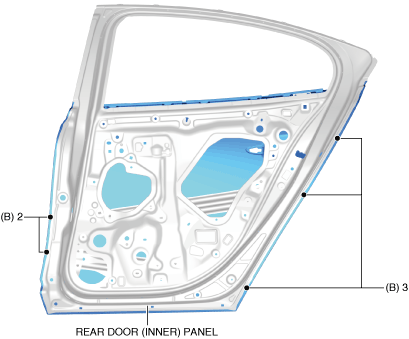

3.  Drill the spot welds in the 5 locations in area B shown in the figure from the rear door (inner) panel.

Note

•  When drilling the spot welds in the 5 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

am3zzb00000663

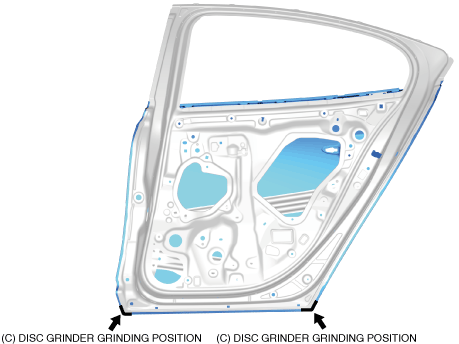

4.  Using a disc grinder, grind the 2 locations in area C shown in the figure.

am3zzb00000664

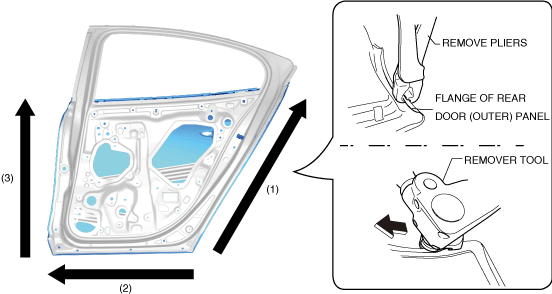

5.  Partially spread open the wider part of the flange for each rear door (outer) panel using remover pliers.

6.  Install the remover tool to the wider part of the flange partially spread open in Step 5.

7.  Move the remover tool in the direction of the arrows in the order of (1), (2), and (3), and raise the flange in each area.

am3zzb00000665

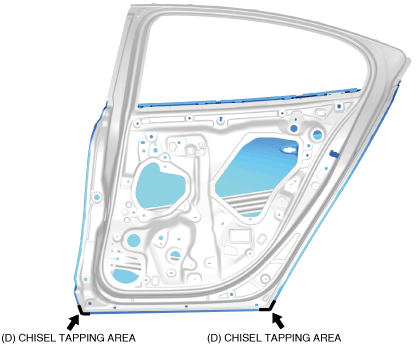

8.  Tap a chisel in the 2 locations in area D shown in the figure and peel off the adhesive adhering to the rear door (outer) panel and the rear door (inner) panel.

am3zzb00000666

9.  Using the remover pliers, remove the crimp in area E shown in the figure.

am3zzb00000667

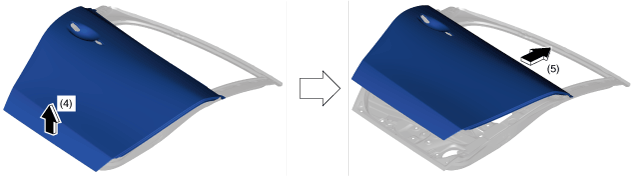

10.  Move and remove the rear door (outer) panel in the order of arrows (4) and (5) shown in the figure.

Note

•  To facilitate installation, peel off the adhesive remaining on the rear door (inner) panel, degrease and clean the area after removing the rear door (outer) panel.

am3zzb00000668

Not using remover tool

1.  Insert a scraper from the service hole of the rear door (inner) panel, and peel off the damping material shown in the figure from the rear door (outer) panel.

Note

•  Use the scraper along the rear door (outer) panel, and peel off the damping material so that it remains on the side-impact bar side.

4SD

am3zzb00000661

5HB

am3zzb00000682

2.  Drill the spot welds in the 2 locations in area A shown in the figure from the rear door (outer) panel.

Note

•  When drilling the spot welds in the 2 locations in area A shown in the figure, do not drill through-holes in consideration of the workability when installing.

am3zzb00000662

3.  Drill the spot welds in the 5 locations in area B shown in the figure from the rear door (inner) panel.

Note

•  When drilling the spot welds in the 5 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

am3zzb00000663

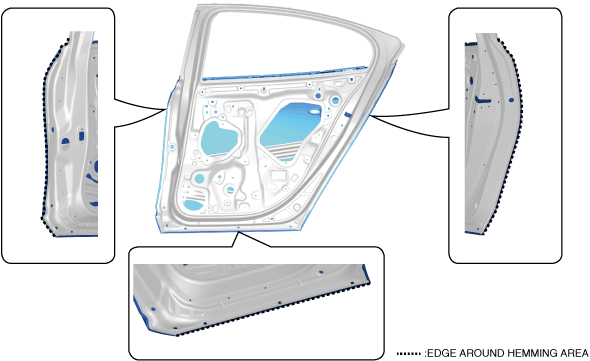

4.  Using a disc grinder, grind the edge around the hemming part of the rear door (outer) panel.

am3zzb00000669

5.  Insert a chisel into the 2 locations in area C shown in the figure and peel off the adhesive adhering to the rear door (outer) panel and the rear door (inner) panel.

am3zzb00000670

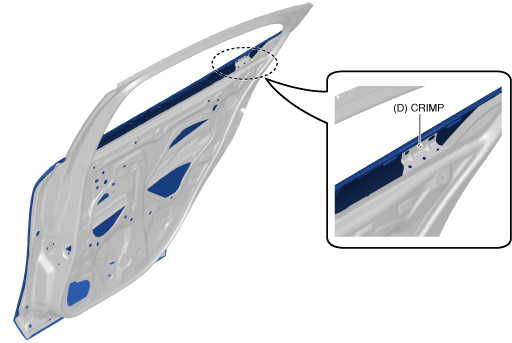

6.  Using the remover pliers, remove the crimp in area D shown in the figure.

am3zzb00000671

7.  Move and remove the rear door (outer) panel in the order of arrows (1) and (2) shown in the figure.

Note

•  To facilitate installation, peel off the adhesive remaining on the rear door (inner) panel, degrease and clean the area after removing the rear door (outer) panel.

am3zzb00000672
