FRONT SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008605900

Symbol Mark

am6zzb00000349

Removal Procedure

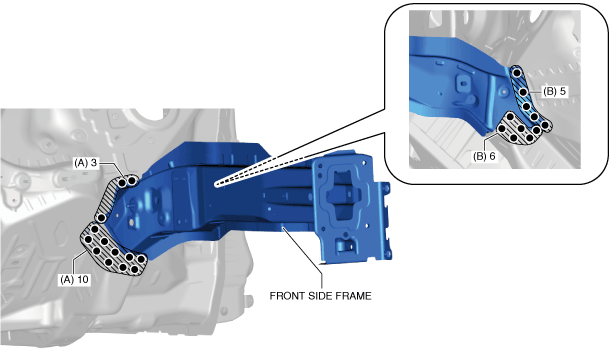

1.  Drill the spot welds in the 13 locations in area A shown in the figure from the engine compartment.

2.  Drill the spot welds in the 11 locations in area B shown in the figure.

am3zzb00000341

3.  Remove the front side frame from the front frame (rear).
