FRONT SIDE FRAME INSTALLATION [PANEL REPLACEMENT]

id098008606000

Symbol Mark

ac5uub00000096

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

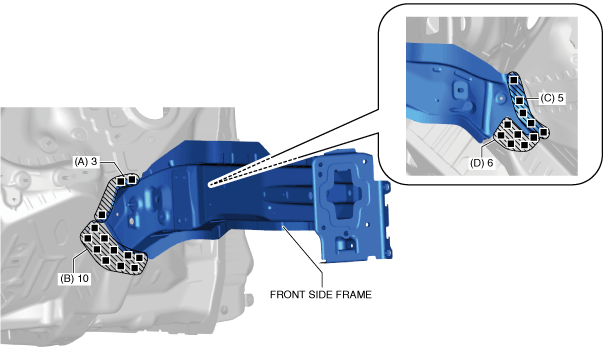

2.  Before installing the new part, drill holes for plug welding in the 3 locations in area A and the 5 locations in area C shown in the figure.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug welds in the 3 locations in area A shown in the figure from the engine compartment.

5.  Plug welds in the 10 locations in area B shown in the figure from the engine compartment.

6.  Plug welds in the 5 locations in area C shown in the figure from the front wheel housing.

7.  Plug welds in the 6 locations in area D shown in the figure from the front wheel housing and install the front side frame.
