CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008610400

Symbol Mark

am6zzb00000431

Removal Procedure

4SD

1.  Drill the spot welds in the 20 locations in area A shown in the figure.

am3zzb00000459

2.  Remove the corner plate (lower).

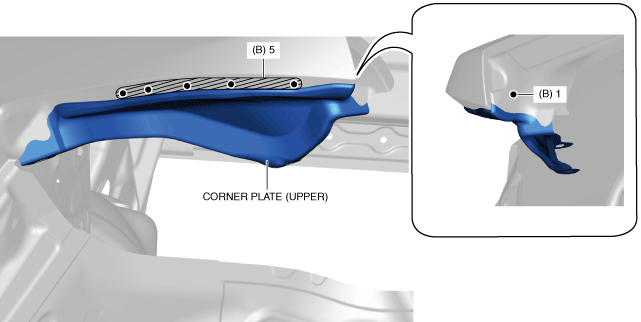

3.  Drill the spot welds in the 6 locations in area B shown in the figure.

am3zzb00000460

4.  Remove the corner plate (upper).

5HB

1.  Drill the spot welds in the 17 locations in area A shown in the figure.

am3zzb00000581

2.  Remove the corner plate (inner).

3.  Drill the spot welds in the 12 locations in area B shown in the figure.

am3zzb00000582

4.  Remove the corner plate (outer).
