CORNER JUNCTION REMOVAL [PANEL REPLACEMENT]

id098008611400

Symbol Mark

am3zzb00000385

Removal Procedure

1.  Using a belt sander, grind the arc welds in the 4 locations in area A shown in the figure from the interior.

2.  Drill the spot welds in the 22 locations in area B shown in the figure from the interior.

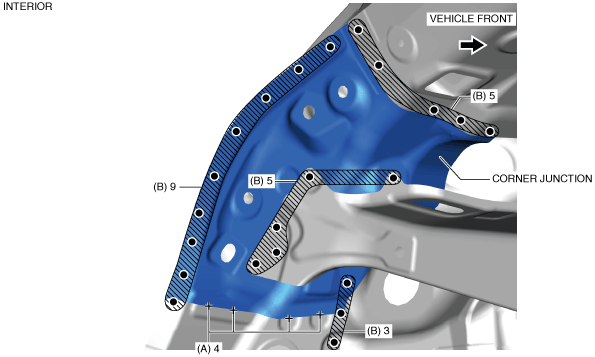

am3zzb00000410

3.  Remove the corner junction.
