REAR FENDER PANEL (LOWER) INSTALLATION [PANEL REPLACEMENT]

id098008614400

Symbol Mark

am6zzb00000425

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

3.  Spot welds in the 29 locations shown in the figure and install the rear fender panel (lower).

am3zzb00000518

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

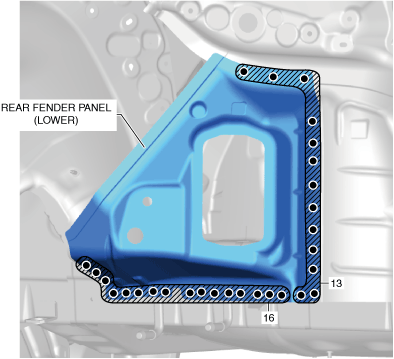

3.  Spot welds in the 22 locations shown in the figure and install the rear fender panel (lower).

am3zzb00000519
