FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008618700

Symbol Mark

am6zzb00000459

Removal Procedure

4SD

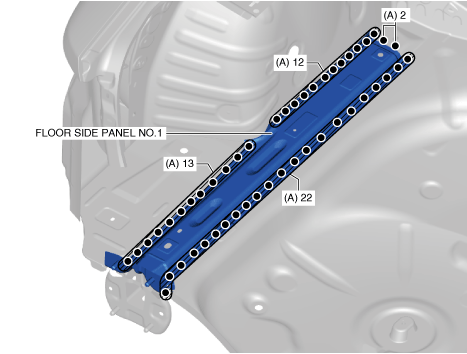

1.  Drill the spot welds in the 49 locations in area A shown in the figure.

am3zzb00000532

2.  Remove the floor side panel No.1.

3.  Drill the spot welds in the 5 locations in area B shown in the figure from the rear wheel housing.

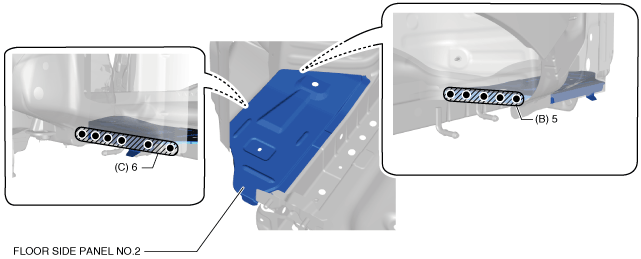

4.  Drill the spot welds in the 6 locations in area C shown in the figure.

am3zzb00000390

5.  Remove the floor side panel No.2.

5HB

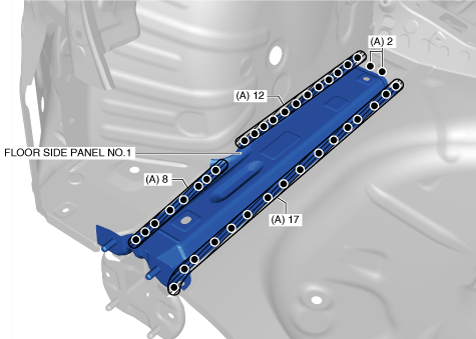

1.  Drill the spot welds in the 39 locations in area A shown in the figure.

am3zzb00000391

2.  Remove the floor side panel No.1.

3.  Drill the spot welds in the 5 locations in area B shown in the figure from the rear wheel housing.

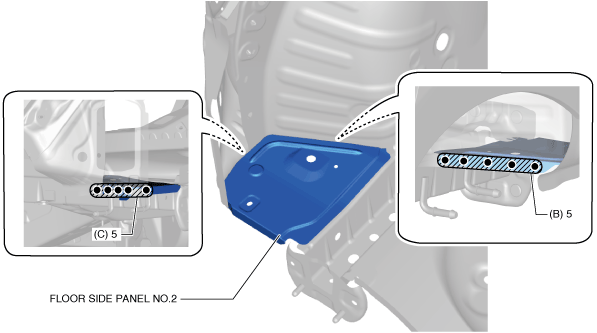

4.  Drill the spot welds in the 5 locations in area C shown in the figure.

am3zzb00000392

5.  Remove the floor side panel No.2.
