FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008742100

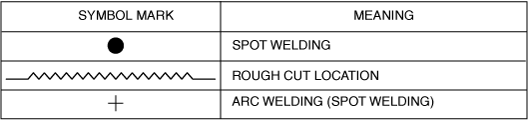

Symbol Mark

am3zzb00000418

Removal Procedure

LH

1.  Rough cut the location in area A shown in the figure.

2.  Drill the spot welds in the 8 locations in area B shown in the figure.

3.  Using a belt sander, grind the arc weld in the 1 location in area C shown in the figure.

am3zzb00000361

4.  Remove the front side frame (outer).

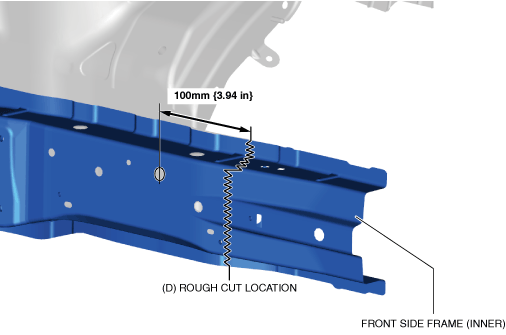

5.  Rough cut the location in area D shown in the figure.

am3zzb00000362

6.  Remove the front side frame (inner).

RH

1.  Rough cut the location in area A shown in the figure.

2.  Drill the spot welds in the 6 locations in area B shown in the figure.

3.  Using a belt sander, grind the arc weld in the 1 location in area C shown in the figure.

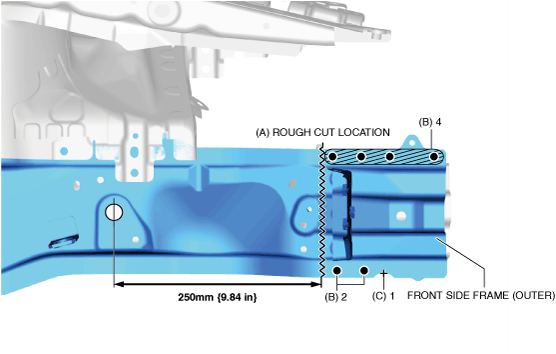

am3zzb00000363

4.  Remove the front side frame (outer).

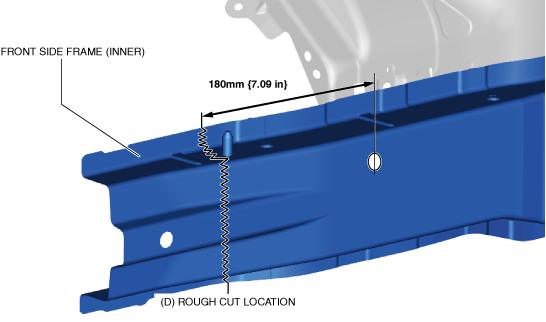

5.  Rough cut the location in area D shown in the figure.

am3zzb00000477

6.  Remove the front side frame (inner).
