REAR FLOOR PAN REMOVAL [PANEL REPLACEMENT]

id098008742700

Symbol Marks

ac3wzb00000137

Removal Procedure

4SD

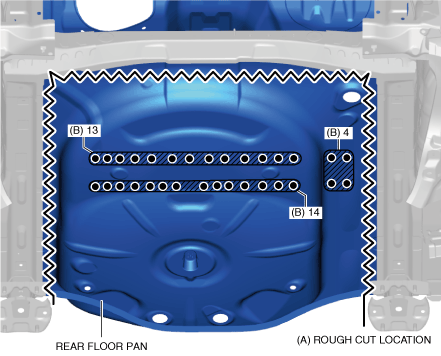

1.  Rough cut the location in area A shown in the figure.

Caution

•  Be careful not to damage crossmember No. 5 and crossmember No. 5 gusset when rough cutting part A shown in the figure. Otherwise, the vehicle strength may become diminished.

2.  Drill the spot welds the 31 locationsin area B shown in the figure.

Note

•  When drilling the spot welds in the 31 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

am3zzb00000393

3.  Remove the rear floor pan.

5HB

1.  Rough cut the location in area A shown in the figure.

Caution

•  Be careful not to damage crossmember No. 5 and crossmember No. 5 gusset when rough cutting part A shown in the figure. Otherwise, the vehicle strength may become diminished.

2.  Drill the spot welds in the 29 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 29 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

am3zzb00000394

3.  Remove the rear floor pan.
