REAR FLOOR PAN INSTALLATION [PANEL REPLACEMENT]

id098008742800

Symbol Marks

am3zzb00000605

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

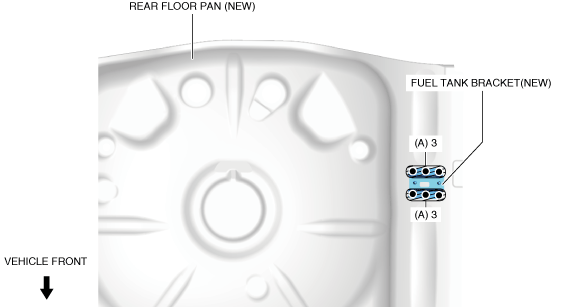

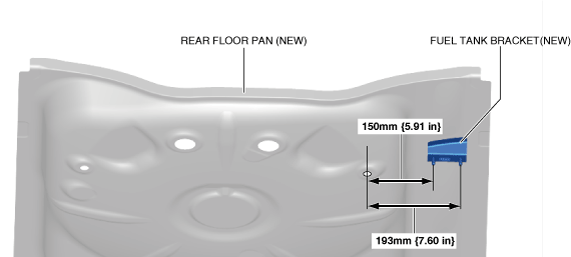

4.  Before installing a rear floor pan (new) to the vehicle body, spot welds in the 6 locations in area A shown in the figure and install the fuel tank bracket (new).

am3zzb00000538

am3zzb00000539

5.  Cut and join the location in area B shown in the figure.

6.  Plug welds in the 31 locations in area C shown in the figure and install the rear floor pan.

am3zzb00000541

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

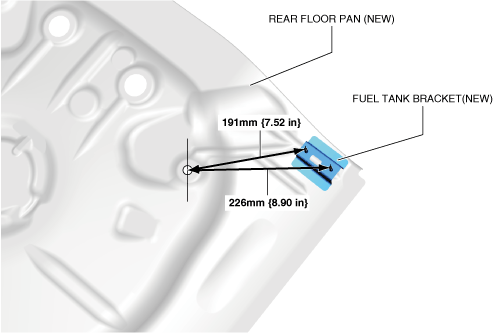

3.  Before installing a rear floor pan (new) to the vehicle body, spot welds in the 6 locations in area A shown in the figure and install the fuel tank bracket (new).

am3zzb00000606

am3zzb00000607

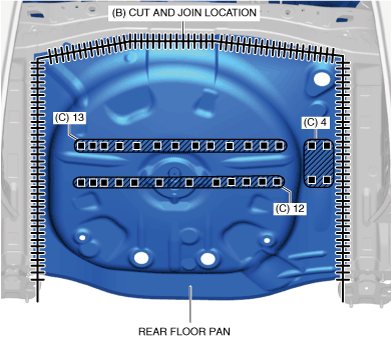

4.  Cut and join the location in area B shown in the figure.

5.  Plug welds in the 29 locations in area C shown in the figure and install the rear floor pan.

am3zzb00000608
