REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

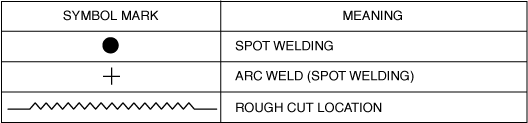

Symbol Mark

ac8wzb00000225

Removal Procedure

4SD

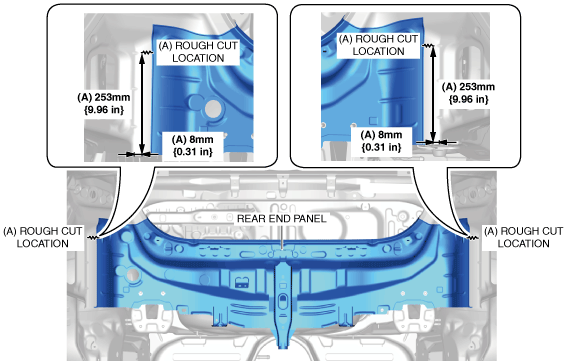

1.  Rough cut the 2 locations in area A shown in the figure.

am3zzb00000462

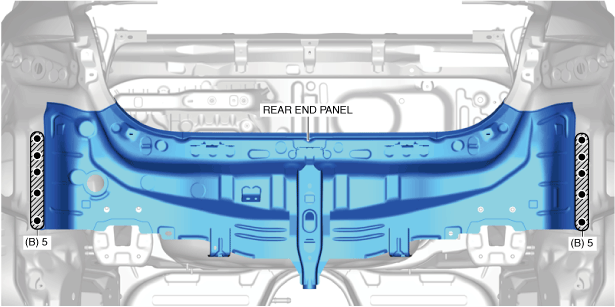

2.  Drill the spot welds in the 10 locations in area B shown in the figure.

am3zzb00000464

3.  Bend the edge of the rear fender panel (lower) in the direction of arrow (1) shown in the figure.

am3zzb00000544

4.  Drill the spot welds in the 55 locations in area C shown in the figure.

Without rear end panel center reinforcement

am3zzb00000775

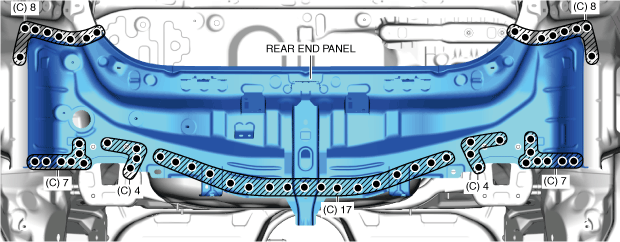

With rear end panel center reinforcement

am3zzb00000776

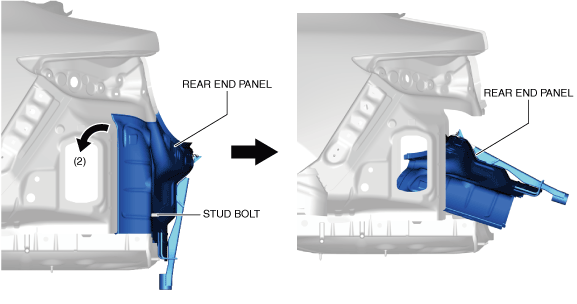

5.  While pulling the lower end of the rear end panel in the direction of arrow (2), pull the panel off the stud bolts.

am3zzb00000465

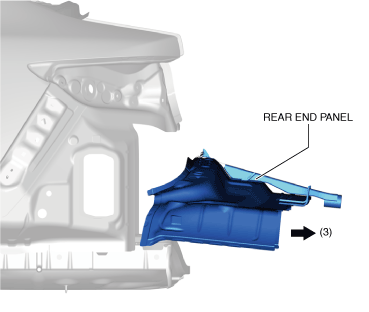

6.  Pull the rear end panel out in the direction of arrow (3) and remove the rear end panel.

am3zzb00000466

5HB

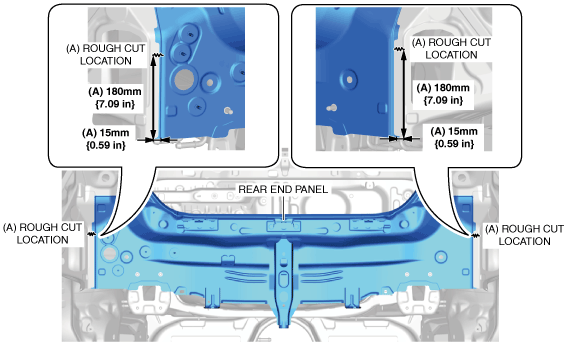

1.  Rough cut the 2 locations in area A shown in the figure.

am3zzb00000588

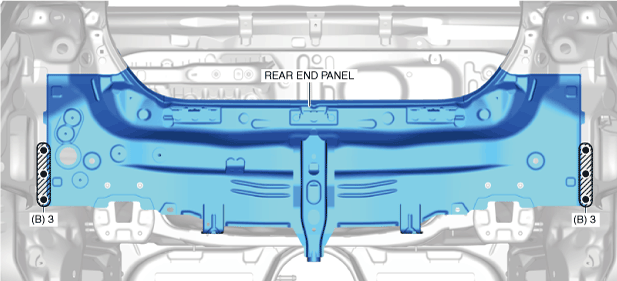

2.  Drill the spot welds in the 6 locations in area B shown in the figure.

am3zzb00000589

3.  Bend the edge of the rear fender panel (lower) in the direction of arrow (1) shown in the figure.

am3zzb00000592

4.  Drill the spot welds in the 57 locations in area C shown in the figure.

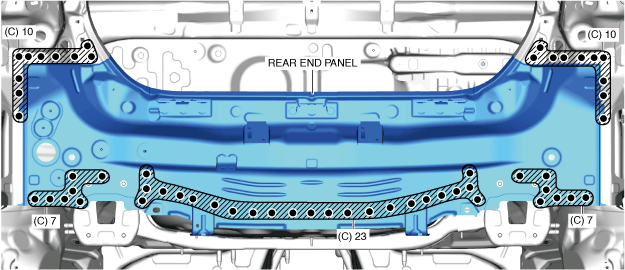

Without rear end panel center reinforcement

am3zzb00000777

With rear end panel center reinforcement

am3zzb00000590

5.  Drill the spot welds in the 8 locations in area D shown in the figure from the interior.

6.  Using the belt sander, grind the arc welds in the 8 locations in area E shown in the figure from the interior.

am3zzb00000591

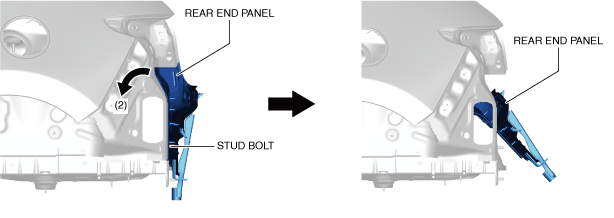

7.  While pulling the lower end of the rear end panel in the direction of arrow (2), pull the panel off the stud bolts.

am6zzb00000762

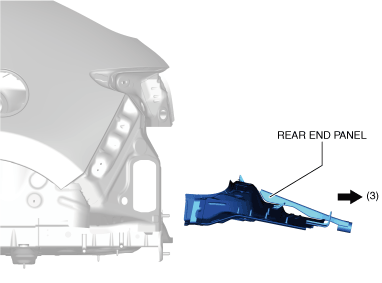

8.  Pull the rear end panel out in the direction of arrow (3) and remove the rear end panel.

am3zzb00000593
