WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Mark

am6zzb00000341

Removal Procedure

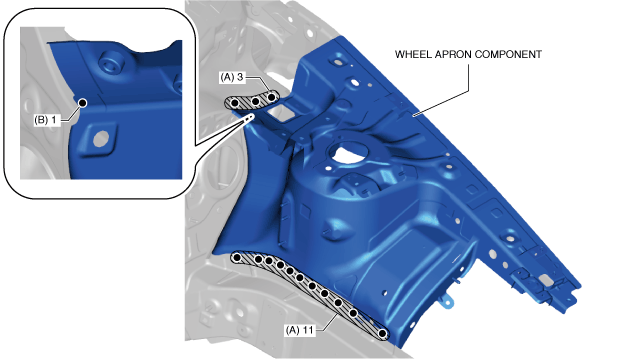

1.  Drill the spot welds in the 14 locations in area A shown in the figure from the engine compartment.

2.  Using a belt sander, grind the spot weld in the 1 location in area B shown in the figure from the engine compartment.

am3zzb00000337

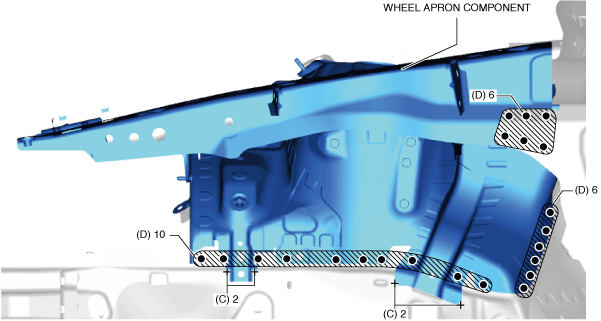

3.  Using a belt sander, grind the arc spot welds in the 4 locations in area C shown in the figure from the front wheel housing.

4.  Drill the spot welds in the 22 locations in area D shown in the figure from the front wheel housing.

am3zzb00000338

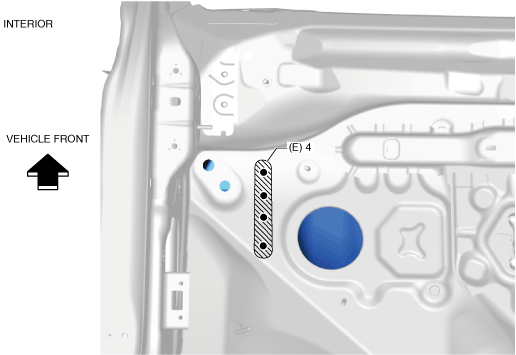

5.  Drill the spot welds in the 4 locations in area E shown in the figure from the interior.

am3zzb00000339

6.  Remove the wheel apron component.
