REAR PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008747200

Symbol Mark

am6zzb00000451

Removal Procedure

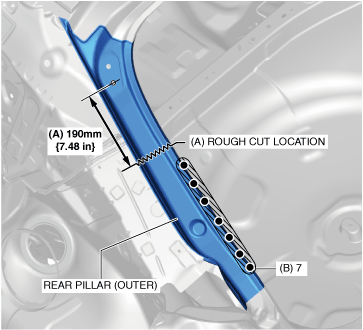

1.  Rough cut the location in area A shown in the figure.

2.  Drill the spot welds in the 7 locations in area B shown in the figure.

am3zzb00000411

3.  Remove the rear pillar (outer).
