FRONT FRAME (REAR) COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008752600

Symbol Mark

am6zzb00000375

Removal Procedure

1.  Drill the spot welds in the 38 locations in area A shown in the figure from the interior.

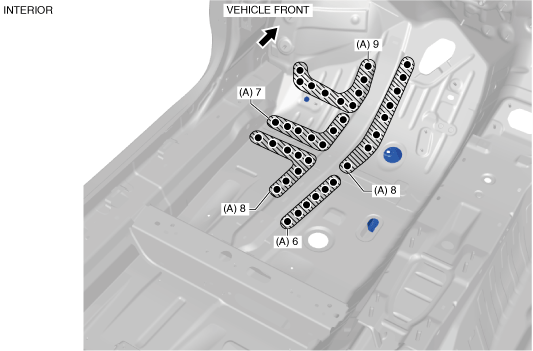

am3zzb00000345

2.  Drill the spot welds in the 42 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 42 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

am3zzb00000346

3.  Remove the front frame (rear) component.
