APRON REINFORCEMENT (UPPER) (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008801000

Symbol Mark

am6zzb00000379

Removal Procedure

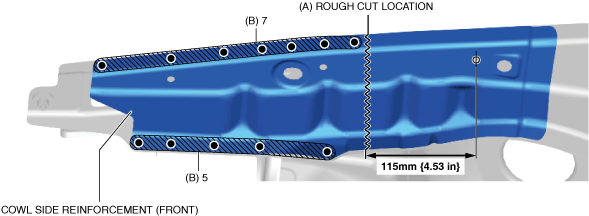

1.  Rough cut the location in area A shown in the figure.

2.  Drill the spot welds in the 12 locations in area B shown in the figure.

LH

am6zzb00000800

RH

am3zzb00000706

3.  Remove the cowl side reinforcement (front).

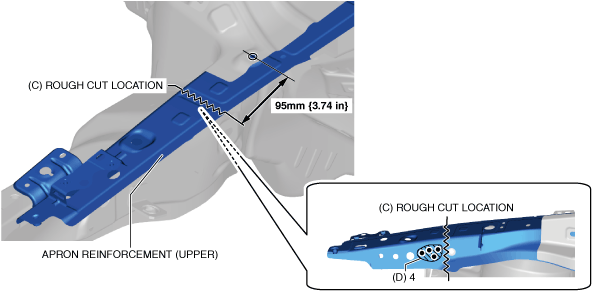

4.  Rough cut the location in area C shown in the figure.

5.  Drill the spot welds in the 4 locations in area D shown in the figure.

am3zzb00000480

6.  Remove the apron reinforcement (upper).
