PACKAGE TRAY REMOVAL [PANEL REPLACEMENT]

id098008819900

Symbol Mark

am6zzb00000431

Removal Procedure

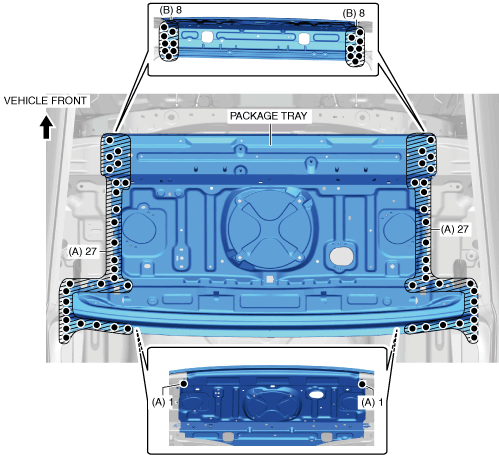

1.  Drill the spot welds in the 56 locations in area A shown in the figure.

2.  Drill the spot welds in the 16 locations in area B shown in the figure.

am3zzb00000384

3.  Remove the package tray.
