FRONT FENDER JUNCTION REMOVAL [PANEL REPLACEMENT]

id098008828300

Symbol Mark

am6zzb00000345

Removal Procedure

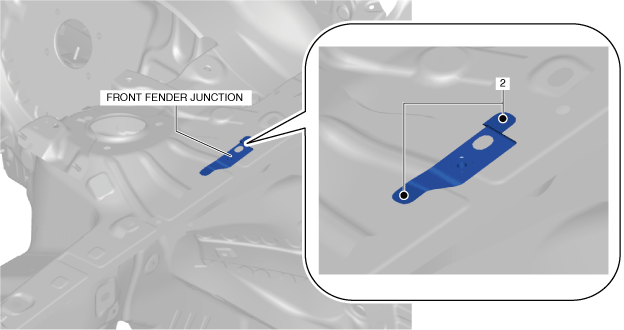

1.  Drill the spot welds in the 2 locations shown in the figure.

am3zzb00000340

2.  Remove the front fender junction.
