REAR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008829100

Symbol Mark

am3uub00000413

Removal Procedure

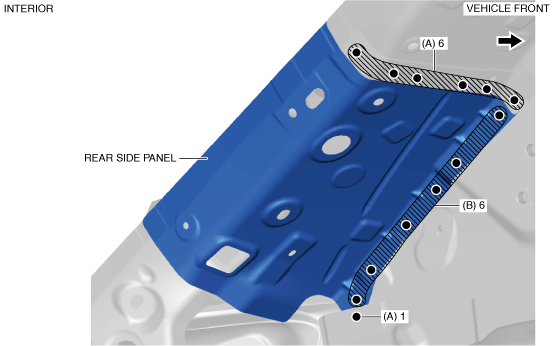

1.  Drill the spot welds in the 7 location in area A shown in the figure from the interior.

2.  Drill the spot welds in the 6 locations in area B shown in the figure from the interior.

am3zzb00000412

3.  Remove the rear side panel.
