SHROUD UPPER REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008927900

Symbol Mark

am6zzb00000333

Removal Procedure

1.  Drill the spot welds in the 2 locations in area A shown in the figure.

2.  Drill the spot welds in the 2 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 2 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

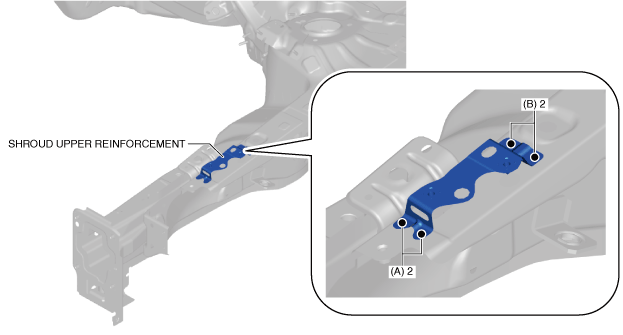

am3zzb00000334

3.  Remove the shroud upper reinforcement.
