SHROUD UPPER REINFORCEMENT INSTALLATION [PANEL REPLACEMENT]

id098008928000

Symbol Mark

am3zzb00000547

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Before installing the new part, drill holes for plug welding in the 2 locations in area B.

3.  After temporarily installing new parts, make sure the related parts fit properly.

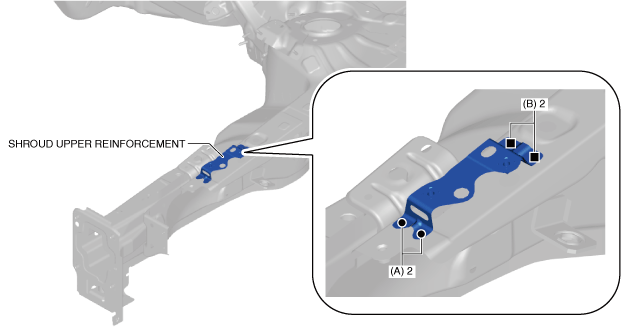

4.  Spot welds in the 2 locations in area A shown in the figure.

5.  Plug welds in the 2 locations in area B shown in the figure and install the shroud upper reinforcement.
