COWL SIDE REINFORCEMENT (REAR) REMOVAL [PANEL REPLACEMENT]

id098008950200

Symbol Mark

ac5uub00000219

Removal Procedure

1.  Drill the spot welds in the 8 locations in area A shown in the figure.

Note

•  When drilling the spot welds in the 8 locations in area A shown in the figure, do not drill through-holes in consideration of the workability when installing.

2.  Drill the spot welds in the 2 locations in area B shown in the figure.

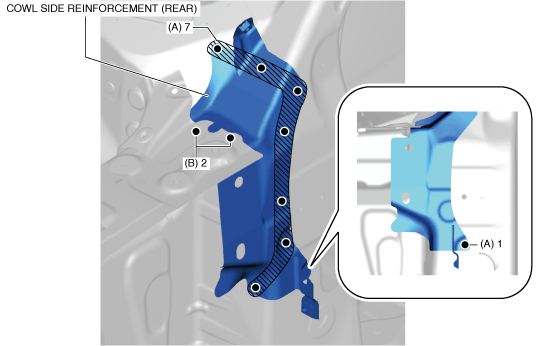

am3zzb00000336

3.  Remove the cowl side reinforcement (rear).
