COWL SIDE REINFORCEMENT (REAR) INSTALLATION [PANEL REPLACEMENT]

id098008950300

Symbol Mark

ac5uub00000221

Installation Procedure

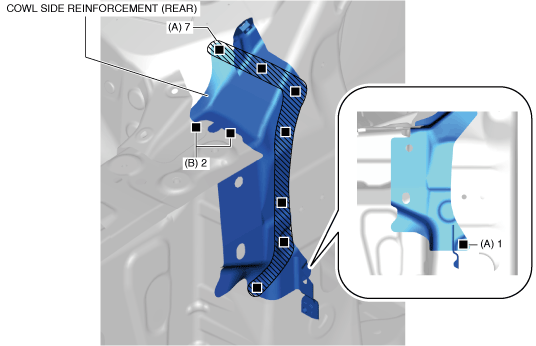

1.  Before installing the new part, drill holes for plug welding in the 8 locations in area A shown in the figure.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug welds in the 8 locations in area A shown in the figure.

5.  Plug welds in the 2 locations in area B shown in the figure and install the cowl side reinforcement (rear).
