COWL UPPER PLATE REMOVAL [PANEL REPLACEMENT]


id098008957100


Symbol Mark

am6zzb00000362

Removal Procedure

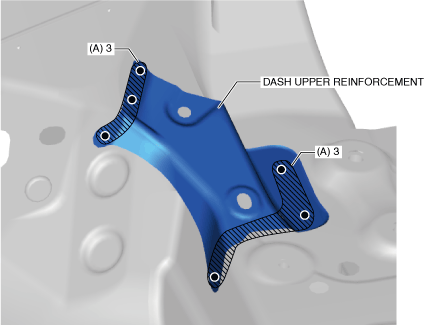

1.  Drill the spot welds in the 6 locations in area A shown in the figure.

am3zzb00000342

2.  Remove the dash upper reinforcement.

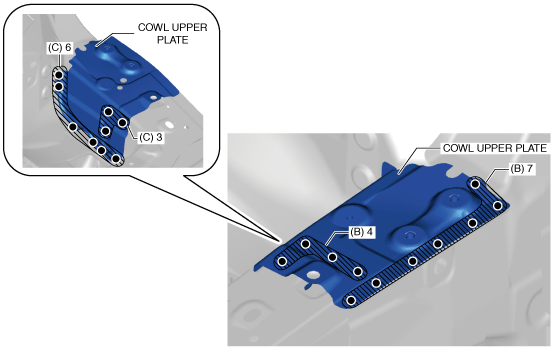

3.  Drill the spot welds in the 11 locations in area B shown in the figure.

4.  Drill the spot welds in the 9 locations in area C shown in the figure from the engine compartment.

am3zzb00000343

5.  Remove the cowl upper plate.
