COWL UPPER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008957200

Symbol Mark

ac5uub00000096

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

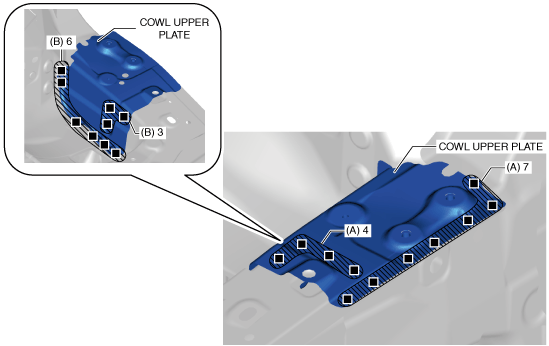

4.  Plug welds in the 11 locations in area A shown in the figure.

5.  Plug welds in the 9 locations in area B shown in the figure from the engine compartment and install the cowl upper plate.

am3zzb00000478

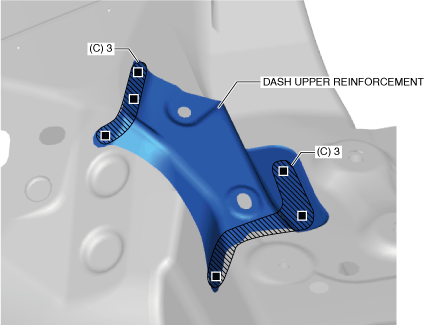

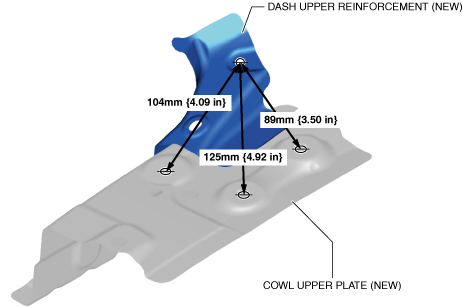

6.  Plug welds in the 6 locations in area C shown in the figure and install the dash upper reinforcement.

am6zzb00000692

am3zzb00000479
