SOUND DUMPING SHEET REPLACEMENT [(E)]
id0980097557x4
• After repairing the body, attach the sound dumping sheet to the location shown in the figure for noise insulation.
4SD
VIN: JM*

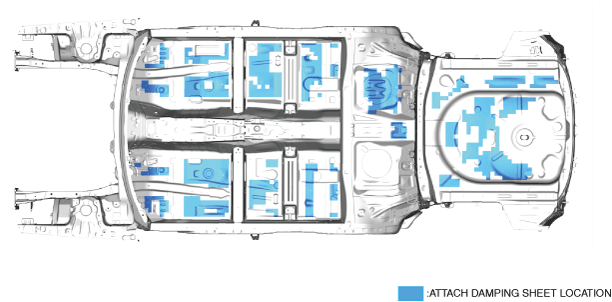

am3zzb00000708
VIN: 3M*

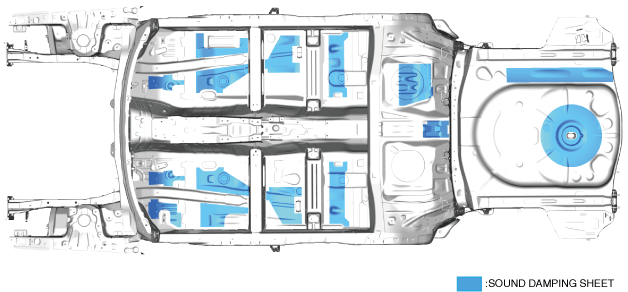

am3zzb00000756
VIN: MM*
am3zzb00000758
5HB
VIN: JM*
am3zzb00000704
VIN: MM*
am3zzb00000757
