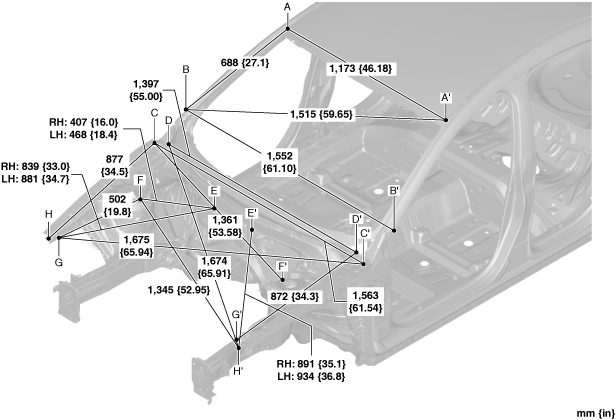

FRONT BODY DIMENSIONS (2) [DIMENSIONS]
id098010990200
am3zzb00000616
|
am3zzb00000617
|
|

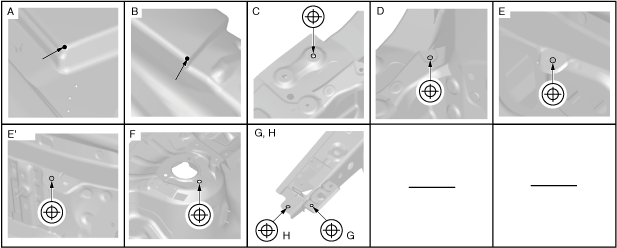

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Roof projection location
|
-
|
|
B
|
Cabin side frame (outer) (front pillar outer) projection location
|
-
|
|
C
|
Hood hinge installation hole
|
φ10 {0.39}
|
|
D
|
Dash upper reinforcement datum hole
|
φ7 {0.28}
|
|
E
|
Crossmember installation hole
|
φ12 {0.47}
|
|
F
|
Front suspension installation hole
|
φ12.3 {0.485}
|
|
G
|
Apron reinforcement (upper) datum hole
|
φ7 {0.28}
|
|
H
|
Shroud upper reinforcement installation hole
|
φ7 {0.28}
|
